DF11-26DP-2DSA(01)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 26POS 2MM
$2.75
Available to order
Reference Price (USD)
1+
$2.30000
10+
$2.08300
100+
$1.78500
500+
$1.48750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF11-26DP-2DSA(01) by Hirose Electric Co Ltd is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Hirose Electric Co Ltd delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.299" (7.60mm)
- Insulation Height: 0.260" (6.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -30°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 250V
Related Products
Molex
0022479039
Samtec Inc.

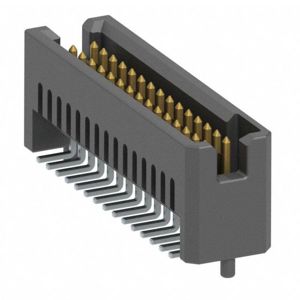

TFM-130-02-L-D-A-P
Sullins Connector Solutions

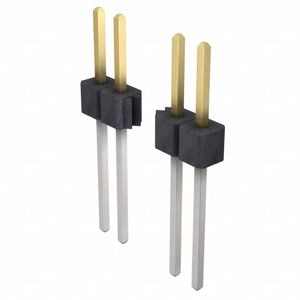

PBC08SAEN
Molex

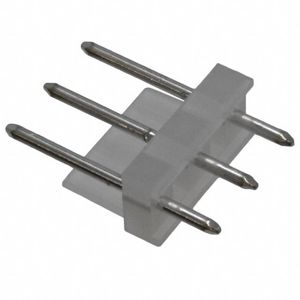

0010085031
Amphenol ICC (FCI)

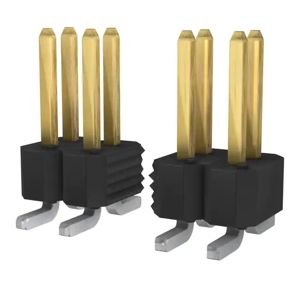

95278-101-24LF
Samtec Inc.

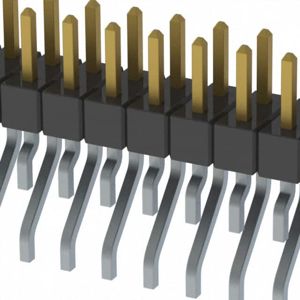

MMT-115-01-S-DH-K-TR
Samtec Inc.

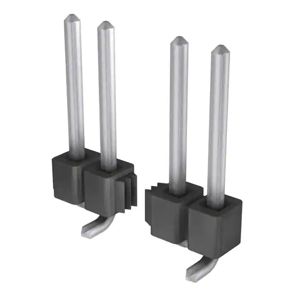

TSM-107-02-T-SV
TE Connectivity AMP Connectors

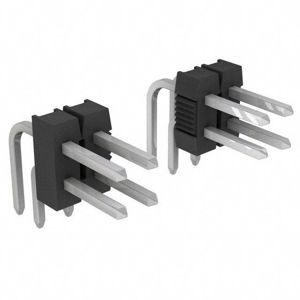

9-103324-0-06
Preci-Dip

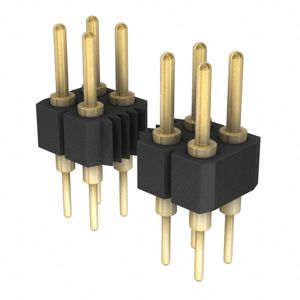

450-10-214-00-018101
