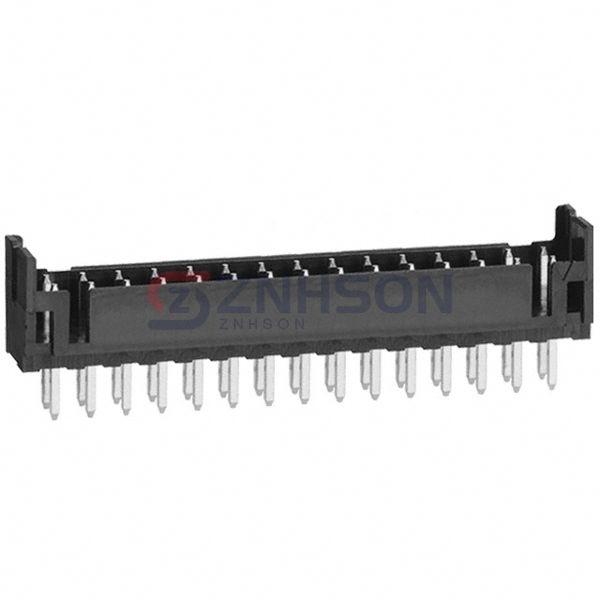

DF11-30DP-2DSA(08)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 30POS 2MM
$0.71
Available to order
Reference Price (USD)
1+
$0.60000
10+
$0.55800
25+
$0.50240
50+
$0.44640
100+
$0.42780
250+
$0.39060
500+
$0.37200
1,000+
$0.30690
2,500+
$0.27900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the DF11-30DP-2DSA(08) rectangular connector header from Hirose Electric Co Ltd. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the DF11-30DP-2DSA(08) meets the highest industry standards. Hirose Electric Co Ltd provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.299" (7.60mm)
- Insulation Height: 0.260" (6.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -30°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 250V
Related Products
TE Connectivity AMP Connectors
2029056-4
TE Connectivity AMP Connectors
9-146261-0-18
Samtec Inc.
BBS-128-G-B
Samtec Inc.
FTSH-110-04-L-DH-A-C
Sullins Connector Solutions
PBC34DGAN
3M
929710-01-35
TE Connectivity AMP Connectors

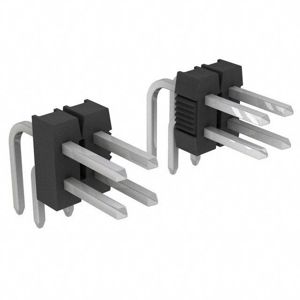

5-103330-4
Preci-Dip

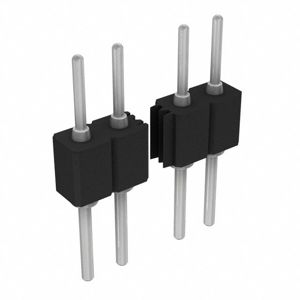

350-80-130-00-001101
Preci-Dip

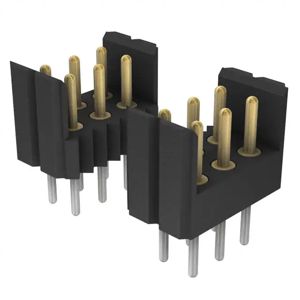

804-V3-087-12-002101
