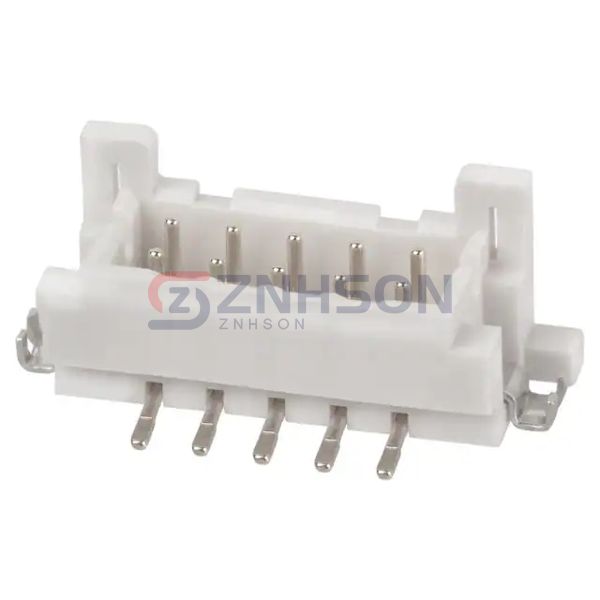

DF11GZ-10DP-2V(20)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER SMD 10POS 2MM
$1.34
Available to order
Reference Price (USD)
1+
$1.13000
27+
$0.93593
108+
$0.85796
513+
$0.70201
1,026+
$0.62400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF11GZ-10DP-2V(20) male pin header by Hirose Electric Co Ltd offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Hirose Electric Co Ltd for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.283" (7.19mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide, Solder Retention
- Operating Temperature: -30°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): 2A
- Voltage Rating: 250V
Related Products
Samtec Inc.
FTSH-112-01-L-DV-P-TR
Preci-Dip
802-80-058-65-001101
Samtec Inc.
TSM-116-01-L-SH-A-K-TR
Molex
105311-2208
Samtec Inc.
TMMH-108-01-G-D
Samtec Inc.
FTSH-134-04-L-D-RA
Sullins Connector Solutions
PEC32SAGN
Samtec Inc.

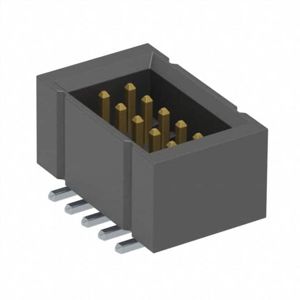

FTMH-105-03-F-DV-ES
