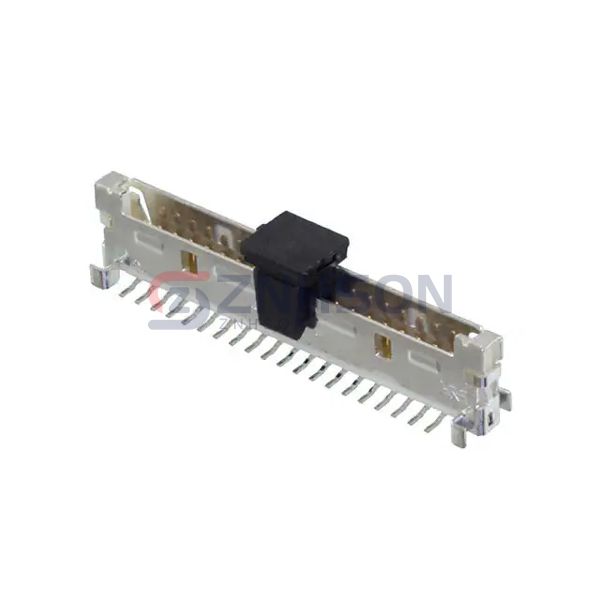

DF19-20P-1V(56)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER SMD 20POS 1MM
$3.78
Available to order
Reference Price (USD)
1,000+
$2.11700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the DF19-20P-1V(56) rectangular connector header from Hirose Electric Co Ltd. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the DF19-20P-1V(56) is perfect for automotive, industrial, and consumer electronics. Hirose Electric Co Ltd ensures each connector is tested for performance and durability.
Specifications
- Product Status: Obsolete
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.206" (5.23mm)
- Contact Shape: -
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.90µin (0.099µm)
- Contact Finish - Post: Tin-Copper
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: Pick and Place, Solder Retention
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): -
- Voltage Rating: 100V
Related Products
TE Connectivity AMP Connectors
2137614-2
Samtec Inc.
TSW-113-17-L-S
3M
929836-05-14
TE Connectivity AMP Connectors
5-103168-7
Harwin Inc.

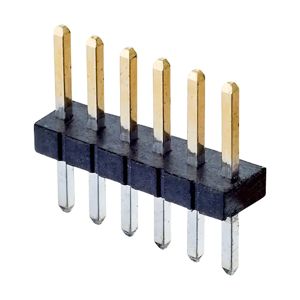

M50-3530642
TE Connectivity AMP Connectors
3-1445086-0
Samtec Inc.

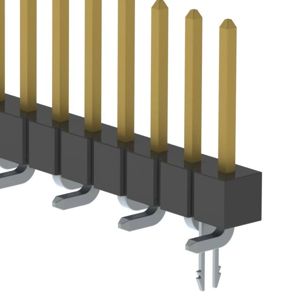

TSM-110-02-S-SV-LC
Samtec Inc.

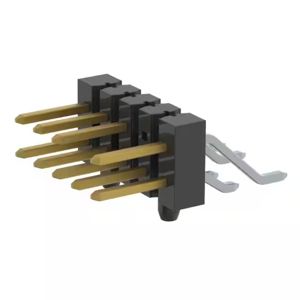

TSM-105-01-S-DH-A-004-P
