DF19L-30P-1H(52)
Hirose Electric Co Ltd
Hirose Electric Co Ltd

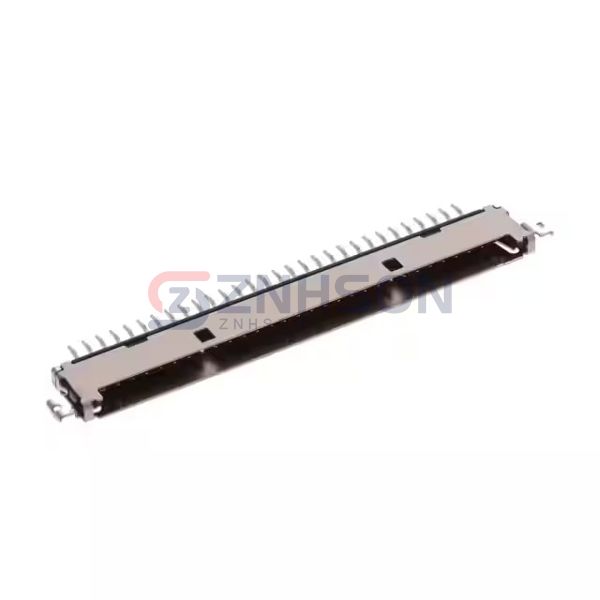

CONN HEADER BRD EDGE 30P 1MM
$2.26
Available to order
Reference Price (USD)
1+
$2.26000
500+
$2.2374
1000+
$2.2148
1500+
$2.1922
2000+
$2.1696
2500+
$2.147
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF19L-30P-1H(52) from Hirose Electric Co Ltd is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the DF19L-30P-1H(52) offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Hirose Electric Co Ltd for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 30
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Board Edge, Cutout; Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.057" (1.45mm)
- Contact Shape: -
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.94µin (0.100µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: Solder Retention
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 100VAC
