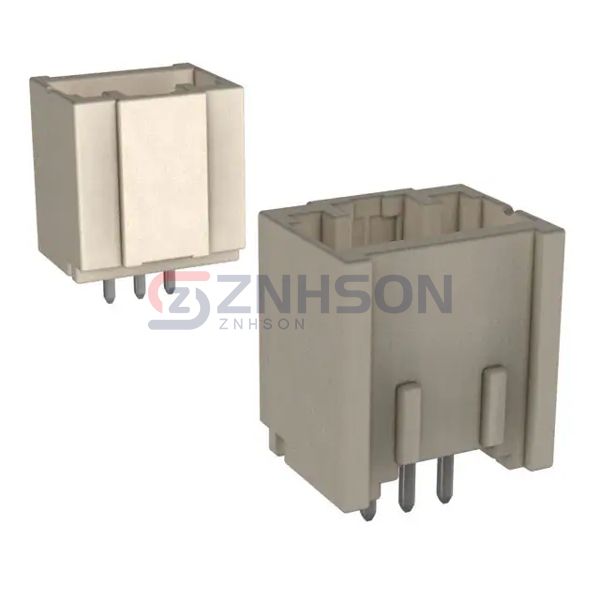

DF1EC-3P-2.5DSA(36)

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.098" (2.50mm)
• Number of Positions: 3
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Latch Holder
• Contact Length - Mating: 0.177" (4.50mm)
• Contact Length - Post: 0.142" (3.60mm)
• Overall Contact Length: -
• Insulation Height: 0.425" (10.80mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 8.00µin (0.203µm)
• Contact Finish - Post: -
• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon
• Features: -
• Operating Temperature: -35°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Natural
• Current Rating (Amps): 3A
• Voltage Rating: -
