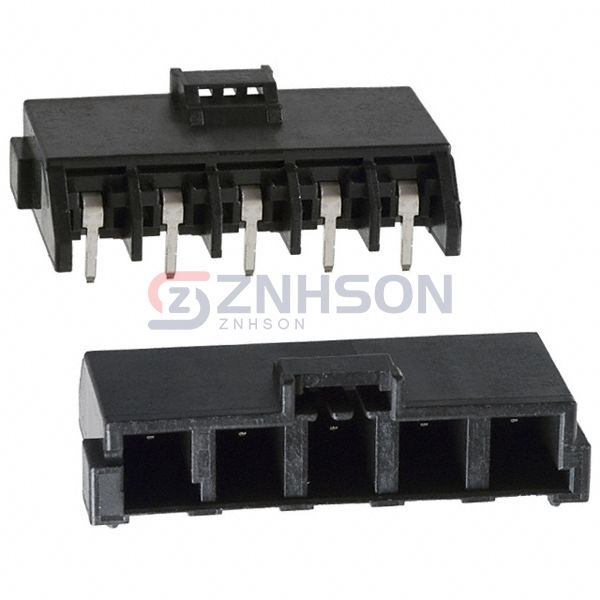

DF22R-5P-7.92DS(05)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 5POS 7.92MM
$1.43
Available to order
Reference Price (USD)
1+
$1.38000
10+
$1.25000
100+
$1.07100
500+
$0.89250
1,000+
$0.76500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF22R-5P-7.92DS(05) from Hirose Electric Co Ltd is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the DF22R-5P-7.92DS(05) offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Hirose Electric Co Ltd for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.312" (7.92mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.354" (9.00mm)
- Contact Length - Post: 0.146" (3.70mm)
- Overall Contact Length: -
- Insulation Height: 0.480" (12.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Copper
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 22A
- Voltage Rating: 1000V
