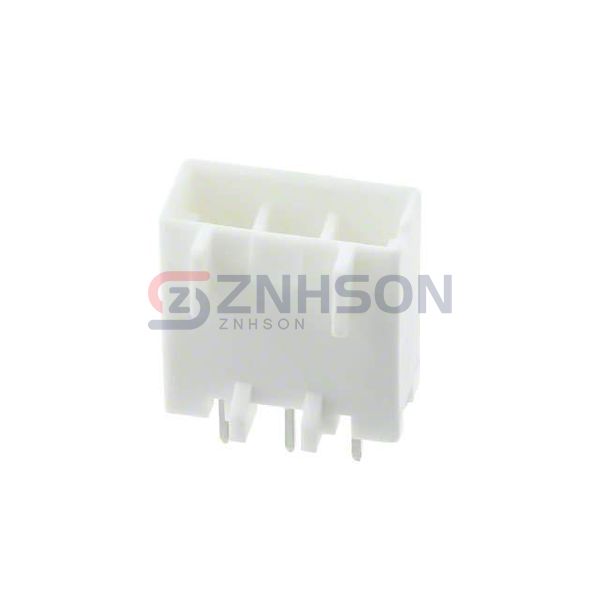

DF33C-3P-3.3DSA(24)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 3POS 3.3MM
$0.44
Available to order
Reference Price (USD)
1+
$0.41000
10+
$0.38500
100+
$0.26950
950+
$0.20351
1,900+
$0.18260
5,700+
$0.16500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the DF33C-3P-3.3DSA(24) rectangular connector header from Hirose Electric Co Ltd. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the DF33C-3P-3.3DSA(24) is perfect for automotive, industrial, and consumer electronics. Hirose Electric Co Ltd ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.130" (3.30mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.453" (11.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Board Guide
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): 5A
- Voltage Rating: 500V
Related Products
Samtec Inc.
EHF-105-01-F-D
Amphenol ICC (FCI)
77311-822-05LF
Preci-Dip

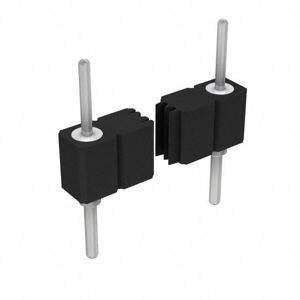

350-80-117-01-714101
Samtec Inc.

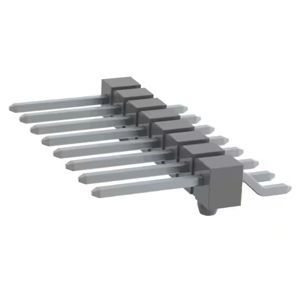

TSM-108-02-T-SH-A-K-TR
Samtec Inc.

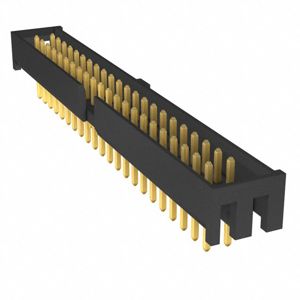

STMM-122-02-G-D
Samtec Inc.

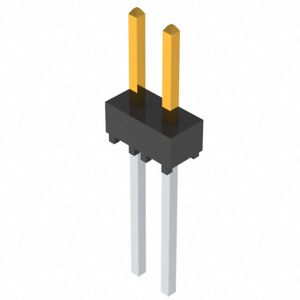

TSW-102-09-S-S
Samtec Inc.
FTE-112-01-G-DH-K
TE Connectivity AMP Connectors

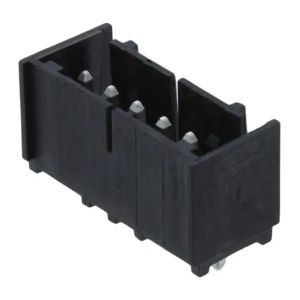

2-647123-6
