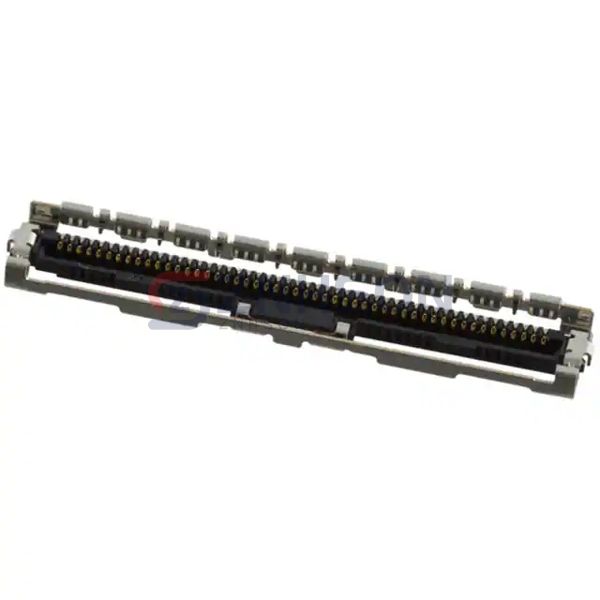

DF36A-50S-0.4V(55)
Hirose Electric Co Ltd

Hirose Electric Co Ltd
CONN RCPT 50POS 0.016 GOLD SMD
$1.96
Available to order
Reference Price (USD)
500+
$1.90120
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with DF36A-50S-0.4V(55) Hirose Electric Co Ltd Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Hirose Electric Co Ltd connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Center Strip Contact
- Style: Board to Cable/Wire
- Number of Positions: 50
- Number of Positions Loaded: All
- Pitch - Mating: 0.016" (0.40mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Insulation Color: Black
- Insulation Height: 0.059" (1.50mm)
- Contact Length - Post: -
- Operating Temperature: -35°C ~ 85°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Metal Cover, Solder Retention
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 30VAC
