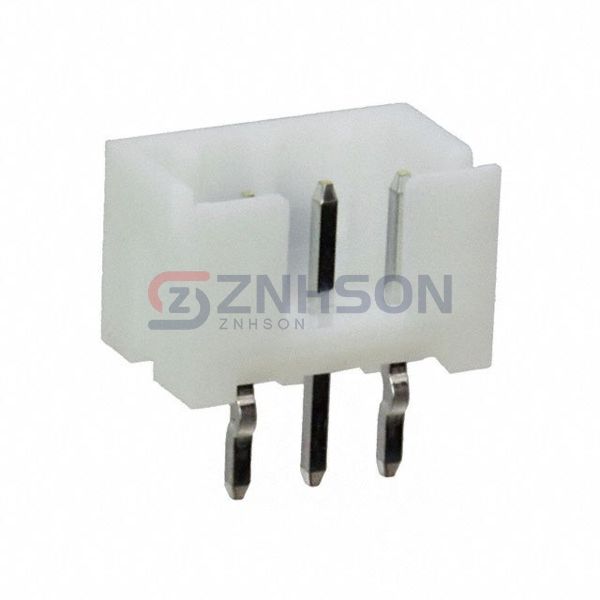

DF3A-3P-2DSA(10)

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.079" (2.00mm)
• Number of Positions: 3
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Press-Fit, Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.122" (3.10mm)
• Contact Length - Post: 0.114" (2.90mm)
• Overall Contact Length: 0.299" (7.60mm)
• Insulation Height: 0.197" (5.00mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 39.4µin (1.00µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon
• Features: -
• Operating Temperature: -55°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: White
• Current Rating (Amps): 3A
• Voltage Rating: -
