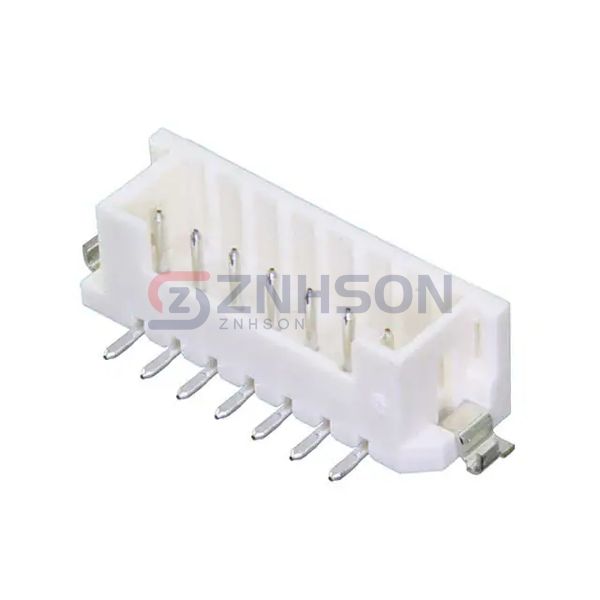

DF3EA-7P-2V(24)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER SMD 7POS 2MM
$0.85
Available to order
Reference Price (USD)
1+
$0.73000
10+
$0.63800
25+
$0.60000
50+
$0.57500
100+
$0.55000
250+
$0.50000
500+
$0.45000
1,000+
$0.40000
2,500+
$0.36250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the DF3EA-7P-2V(24) rectangular connector header from Hirose Electric Co Ltd, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the DF3EA-7P-2V(24) adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Hirose Electric Co Ltd guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.232" (5.90mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Solder Retention
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250VAC
