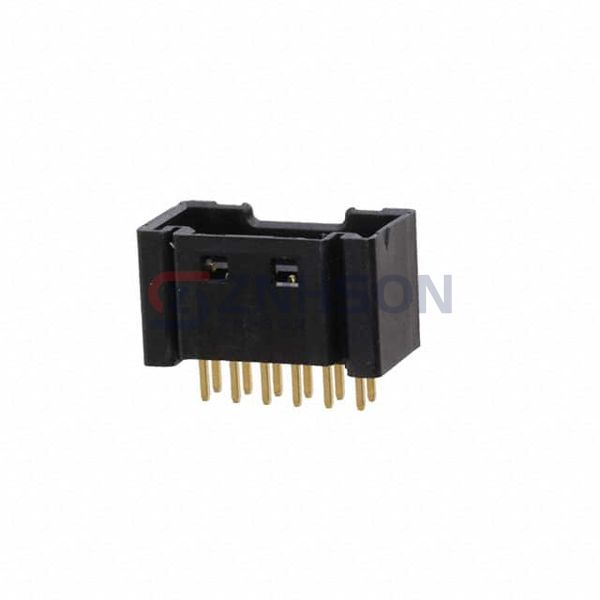

DF51K-12DP-2DSA(805)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HDR 2MM DUAL GLD PCB 12POS
$1.34
Available to order
Reference Price (USD)
1+
$1.34000
500+
$1.3266
1000+
$1.3132
1500+
$1.2998
2000+
$1.2864
2500+
$1.273
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF51K-12DP-2DSA(805) by Hirose Electric Co Ltd is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Hirose Electric Co Ltd delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.331" (8.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.94µin (0.100µm)
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250VAC/DC
Related Products
Samtec Inc.
FTSH-112-02-L-DV-A
Samtec Inc.
TMM-132-03-L-S
Samtec Inc.
TSM-134-01-G-DV

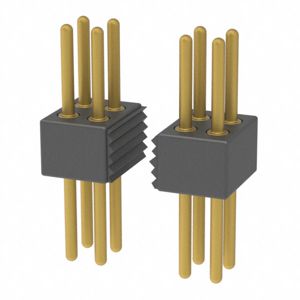

Mill-Max Manufacturing Corp.
852-10-014-10-001000
TE Connectivity AMP Connectors
2-1969582-6

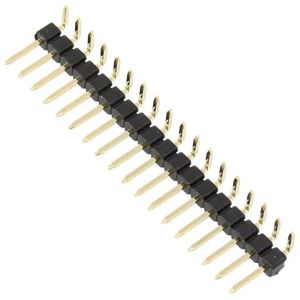

Würth Elektronik
61301811021

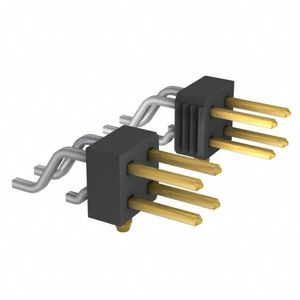

Samtec Inc.
TSM-108-01-FM-DH-P-TR

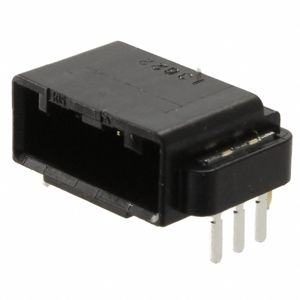

Hirose Electric Co Ltd
