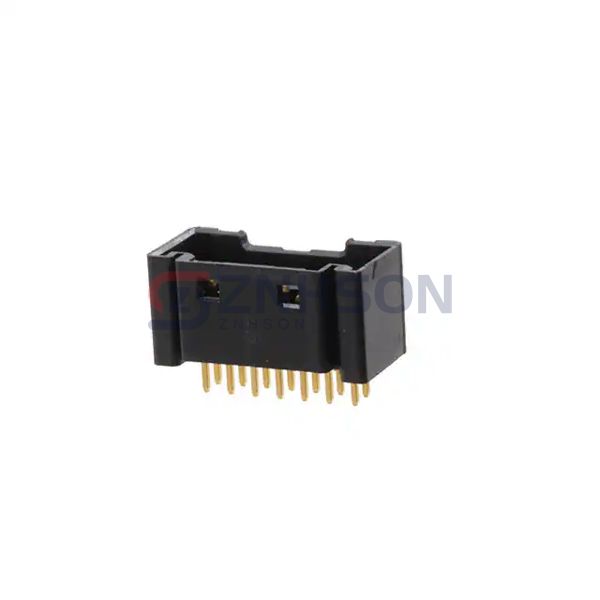

DF51K-14DP-2DSA(805)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HDR 2MM DUAL GLD PCB 14POS
$1.42
Available to order
Reference Price (USD)
1+
$1.42000
500+
$1.4058
1000+
$1.3916
1500+
$1.3774
2000+
$1.3632
2500+
$1.349
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF51K-14DP-2DSA(805) by Hirose Electric Co Ltd is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the DF51K-14DP-2DSA(805) supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Hirose Electric Co Ltd ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.331" (8.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.94µin (0.100µm)
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250VAC/DC
Related Products
METZ CONNECT USA Inc.
PR20203HBDN
Samtec Inc.
TFM-105-02-S-D-LC
Molex
0901310134
Samtec Inc.
TMM-107-05-F-D-SM-P
TE Connectivity AMP Connectors
1-1586041-8
TE Connectivity AMP Connectors
3-794622-2
Amphenol ICC (FCI)
77313-424-14LF

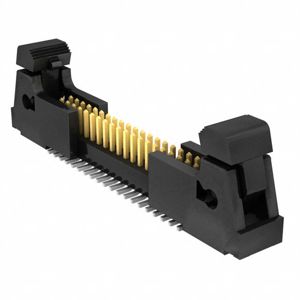

Samtec Inc.
