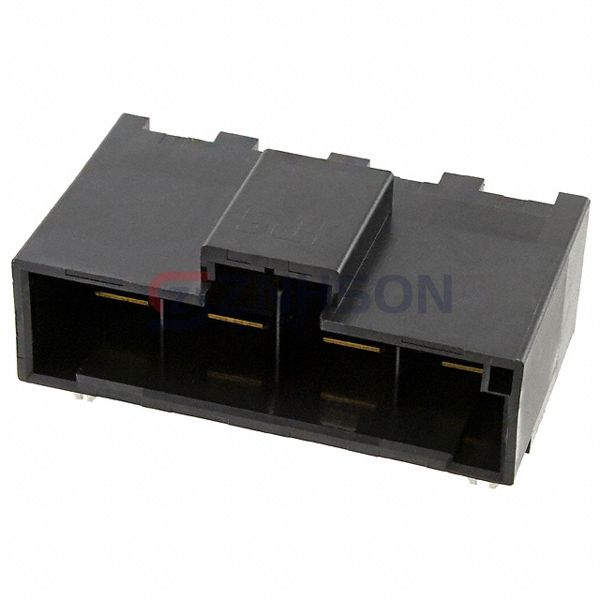

DF60-4P-10.16DS(26)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 4POS 10.16MM
$6.60
Available to order
Reference Price (USD)
1+
$6.20000
36+
$5.45611
108+
$4.96000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF60-4P-10.16DS(26) by Hirose Electric Co Ltd is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the DF60-4P-10.16DS(26) supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Hirose Electric Co Ltd ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Last Time Buy
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.400" (10.16mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: -
- Insulation Height: 0.683" (17.35mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: -
