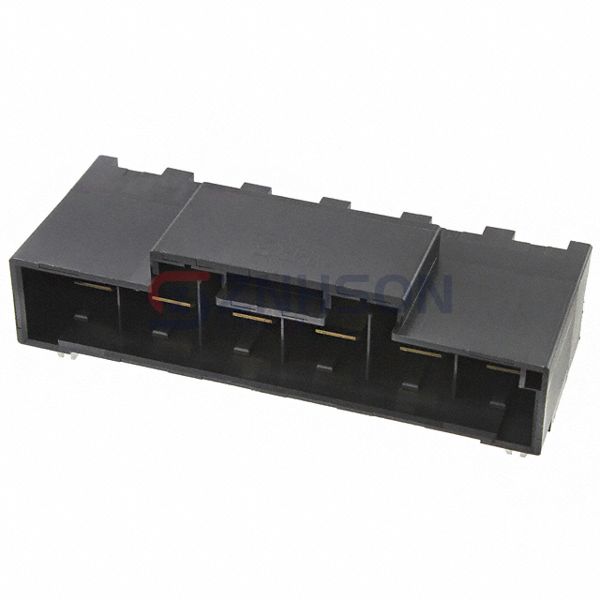

DF60-6P-10.16DS(26)

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Blade
• Pitch - Mating: 0.400" (10.16mm)
• Number of Positions: 6
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Latch Holder
• Contact Length - Mating: -
• Contact Length - Post: 0.150" (3.81mm)
• Overall Contact Length: -
• Insulation Height: 0.683" (17.35mm)
• Contact Shape: Rectangular
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 8.00µin (0.203µm)
• Contact Finish - Post: -
• Contact Material: Copper Alloy
• Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
• Features: Board Guide
• Operating Temperature: -55°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): Varies by Wire Gauge
• Voltage Rating: -
