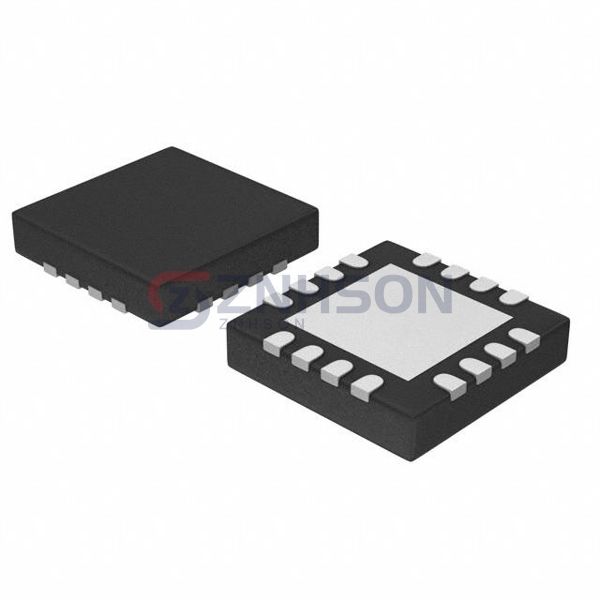

DG2018DN-T1-E4
Vishay Siliconix
Vishay Siliconix
IC SWITCH DUAL SPDT 16QFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DG2018DN-T1-E4 from Vishay Siliconix's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The DG2018DN-T1-E4 is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Obsolete
- Switch Circuit: DPDT
- Multiplexer/Demultiplexer Circuit: 2:2
- Number of Circuits: 2
- On-State Resistance (Max): 8Ohm
- Channel-to-Channel Matching (ΔRon): 600mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 48ns, 33ns
- -3db Bandwidth: 180MHz
- Charge Injection: -2.46pC
- Channel Capacitance (CS(off), CD(off)): 7.5pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -72dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-VFQFN Exposed Pad
- Supplier Device Package: 16-QFN (3x3)
