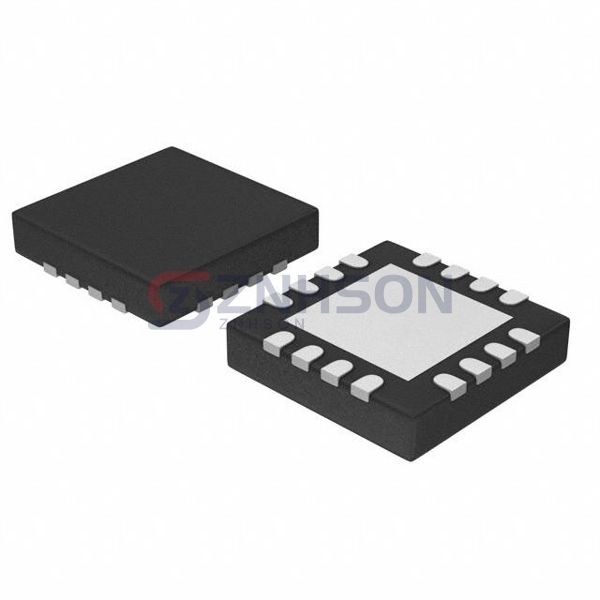

DG2019DN-T1-E4
Vishay Siliconix
Vishay Siliconix
IC SWITCH DUAL SPDT 16QFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DG2019DN-T1-E4 represents Vishay Siliconix's cutting-edge technology in analog signal routing ICs, featuring an innovative charge cancellation technique that eliminates glitches during switching transitions. As part of our specialized Interface components, this device supports both single-ended and differential signal paths with equal precision. Applications span from professional audio mixing consoles to electric vehicle battery management systems, where its <1 typical on-resistance ensures minimal voltage drop. The automotive-qualified version (AEC-Q100) makes it perfect for ADAS sensor arrays and in-vehicle network gateways. Its fail-safe circuitry protects downstream components during hot-swap events.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 8Ohm
- Channel-to-Channel Matching (ΔRon): 600mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 48ns, 33ns
- -3db Bandwidth: 180MHz
- Charge Injection: -2.46pC
- Channel Capacitance (CS(off), CD(off)): 7.5pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -72dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-VFQFN Exposed Pad
- Supplier Device Package: 16-QFN (3x3)
Related Products
Vishay Siliconix
DG9408DN-T1-E4
Analog Devices Inc./Maxim Integrated
MAX4800CXZ+T
Analog Devices Inc./Maxim Integrated
MAX4668ESE+T
Vishay Siliconix
DG384BDJ
onsemi
MC74HC4066AFEL
NXP USA Inc.
HEF4051BP,652
onsemi
MC74HC4052ADT
Renesas Electronics America Inc
DG211CJZ
Renesas Electronics America Inc

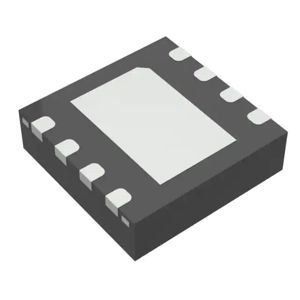

ISL43L122IRZ-T
