DG211BDY-E3
Vishay Siliconix
Vishay Siliconix
IC SWITCH QUAD SPST 16SOIC
$2.77
Available to order
Reference Price (USD)
1+
$2.27000
10+
$2.04100
25+
$1.92520
100+
$1.64010
250+
$1.54000
500+
$1.34750
1,000+
$1.11650
2,500+
$1.03950
5,000+
$1.00100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DG211BDY-E3 from Vishay Siliconix's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The DG211BDY-E3 is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 85Ohm
- Channel-to-Channel Matching (ΔRon): 2Ohm
- Voltage - Supply, Single (V+): 4.5V ~ 25V
- Voltage - Supply, Dual (V±): ±4.5V ~ 22V
- Switch Time (Ton, Toff) (Max): 300ns, 200ns
- -3db Bandwidth: -
- Charge Injection: 1pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 5pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -95dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
Related Products
Harris Corporation
DG528BY
Texas Instruments
SN74HC4851PWR
Analog Devices Inc./Maxim Integrated
MAX4541CPA+
Analog Devices Inc./Maxim Integrated
MAX4611ESD
Analog Devices Inc./Maxim Integrated
DG409CY+T
Intersil
HI3-0516-5Z
onsemi
MC74HCT4851ADR2G
Analog Devices Inc.

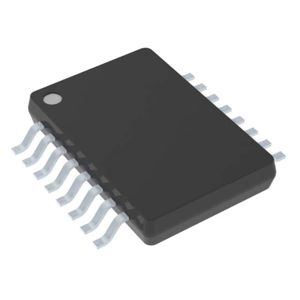

ADG734BRUZ-REEL
