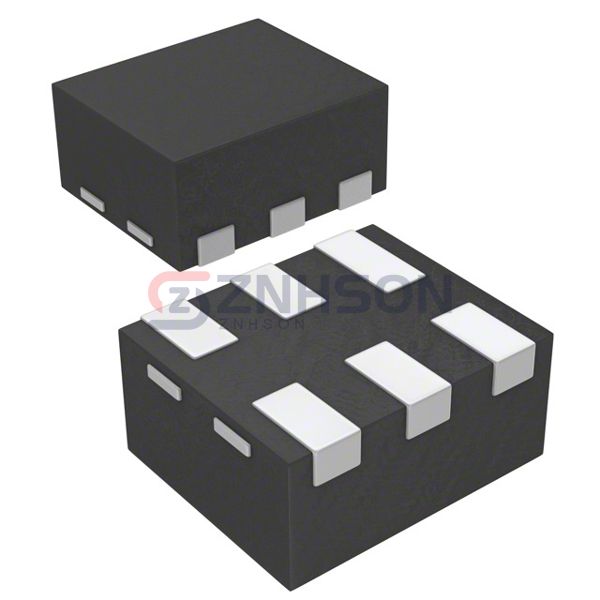

DG2511DN-T1-E4
Vishay Siliconix
Vishay Siliconix
IC SWITCH DUAL LV 6MINIQFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Vishay Siliconix's DG2511DN-T1-E4, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The DG2511DN-T1-E4 meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 1
- On-State Resistance (Max): 1.3Ohm
- Channel-to-Channel Matching (ΔRon): 150mOhm (Max)
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 35ns, 31ns
- -3db Bandwidth: -
- Charge Injection: 14pC
- Channel Capacitance (CS(off), CD(off)): 19pF
- Current - Leakage (IS(off)) (Max): 2nA
- Crosstalk: -64dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 6-UFDFN
- Supplier Device Package: 6-miniQFN (1x1.2)
