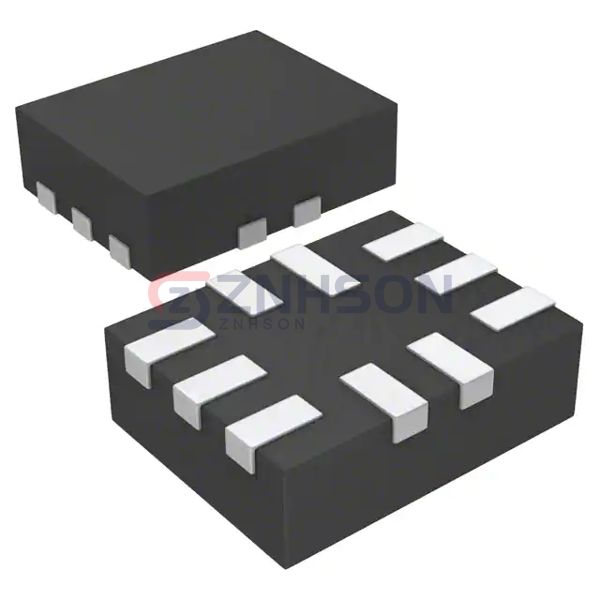

DG2722DN-T1-E4
Vishay Siliconix
Vishay Siliconix
IC SWITCH DPDT USB2.0 10-MINIQFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for mission-critical switching applications, the DG2722DN-T1-E4 by Vishay Siliconix delivers unmatched reliability in our Analog Interface ICs portfolio. Its monolithic CMOS construction provides <5pF channel capacitance and rail-to-rail signal handling capability. The DG2722DN-T1-E4 excels in aerospace telemetry systems, downhole drilling instrumentation, and renewable energy inverters where vibration resistance and long-term stability are paramount. Unique features include: power-off protection (signals pass when unpowered), TTL/CMOS compatible control inputs, and daisy-chain capability for channel expansion. Sample applications include: multi-zone HVAC controls, spectrometer detector arrays, and autonomous vehicle LIDAR subsystems.
Specifications
- Product Status: Obsolete
- Switch Circuit: DPDT
- Multiplexer/Demultiplexer Circuit: 2:2
- Number of Circuits: 2
- On-State Resistance (Max): 8Ohm
- Channel-to-Channel Matching (ΔRon): 800mOhm
- Voltage - Supply, Single (V+): 2.6V ~ 4.3V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 30ns, 25ns
- -3db Bandwidth: 900MHz
- Charge Injection: 0.5pC
- Channel Capacitance (CS(off), CD(off)): 2.2pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -45dB @ 240MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-miniQFN (1.4x1.8)
