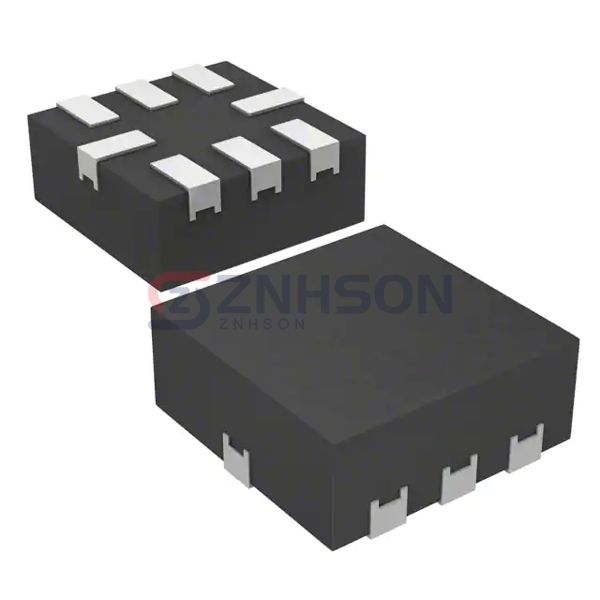

DG2739DN-T1-E4
Vishay Siliconix
Vishay Siliconix
IC SWITCH 2XSPST 8 OHM 8MINIQFN
$0.93
Available to order
Reference Price (USD)
6,000+
$0.42900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Vishay Siliconix's DG2739DN-T1-E4, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The DG2739DN-T1-E4 meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO/NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 2
- On-State Resistance (Max): 8Ohm
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Voltage - Supply, Single (V+): 2.3V ~ 4.3V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 60ns, 50ns
- -3db Bandwidth: 720MHz
- Charge Injection: 10.4pC
- Channel Capacitance (CS(off), CD(off)): 4.4pF, 3.8pF
- Current - Leakage (IS(off)) (Max): 10nA
- Crosstalk: -109dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-UFQFN
- Supplier Device Package: 8-miniQFN (1.4x1.4)
