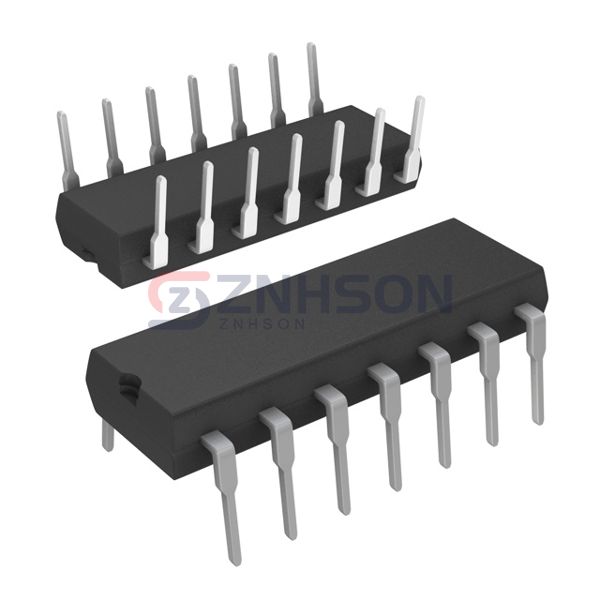

DG303AAK
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
TTL COMPATIBLE CMOS ANALOG SWITC
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc./Maxim Integrated's DG303AAK sets new benchmarks for analog switch ICs with its patented low-voltage operation down to 1.8V while handling analog signals up to 36V peak. This bidirectional multiplexer/demultiplexer from our premium Interface line offers break-before-make switching action with <20ns transition time. Medical ultrasound systems leverage its precision timing characteristics, while IoT edge devices benefit from its 0.1 A leakage current. The DG303AAK is the preferred choice for: laboratory automation equipment, phased-array radar systems, smart grid sensors, and high-speed data loggers. Its lead-free/GREEN compliance meets global environmental standards.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 50Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): ±5V ~ 18V
- Voltage - Supply, Dual (V±): ±5V ~ 18V
- Switch Time (Ton, Toff) (Max): 300ns, 250ns
- -3db Bandwidth: -
- Charge Injection: 12pC
- Channel Capacitance (CS(off), CD(off)): 14pF, 14pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -74dB @ 500kHz
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Through Hole
- Package / Case: 14-CDIP (0.300", 7.62mm)
- Supplier Device Package: 14-CDIP
