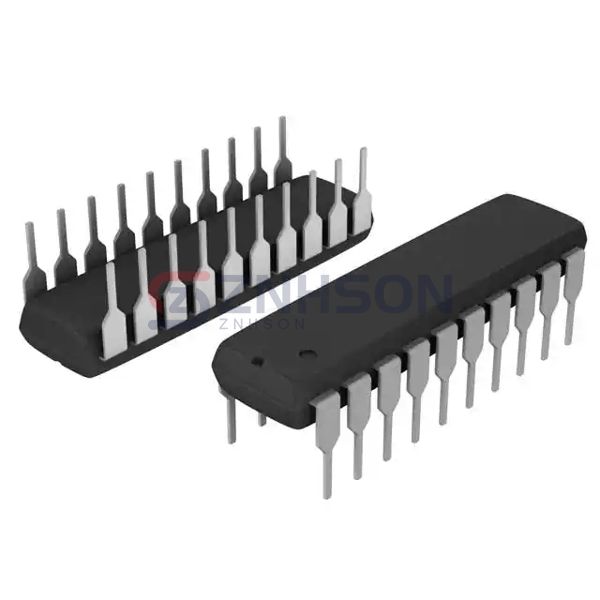

DG333ALDJ-E3
Vishay Siliconix
Vishay Siliconix
IC SWITCH QUAD SPDT 20DIP
$0.00
Available to order
Reference Price (USD)
495+
$4.16251
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DG333ALDJ-E3 by Vishay Siliconix represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The DG333ALDJ-E3 is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 1
- On-State Resistance (Max): 45Ohm
- Channel-to-Channel Matching (ΔRon): 2Ohm (Max)
- Voltage - Supply, Single (V+): 5V ~ 40V
- Voltage - Supply, Dual (V±): ±4V ~ 22V
- Switch Time (Ton, Toff) (Max): 175ns, 145ns
- -3db Bandwidth: -
- Charge Injection: 10pC
- Channel Capacitance (CS(off), CD(off)): 8pF
- Current - Leakage (IS(off)) (Max): 250pA
- Crosstalk: -80dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: 20-DIP (0.300", 7.62mm)
- Supplier Device Package: 20-PDIP
