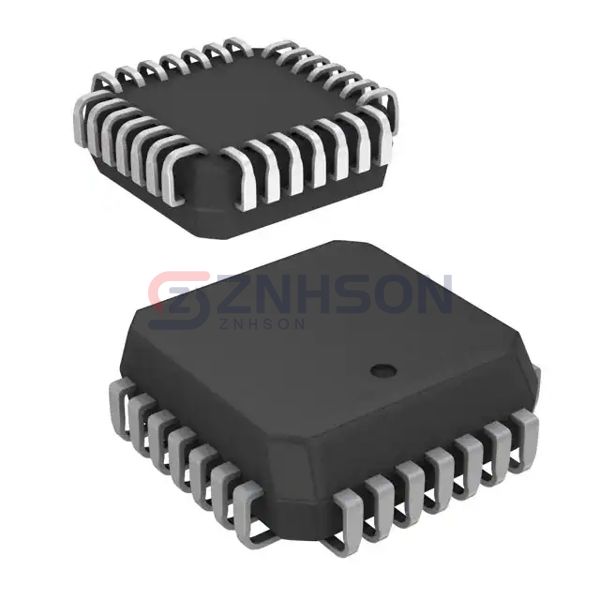

DG406DN-E3
Vishay Siliconix
Vishay Siliconix
IC MUX CMOS ANLG DUAL 8CH 28PLCC
$8.12
Available to order
Reference Price (USD)
1+
$6.66000
10+
$6.02000
25+
$5.74000
100+
$4.98400
250+
$4.76000
500+
$4.34000
1,000+
$3.78000
2,500+
$3.64000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Vishay Siliconix's DG406DN-E3 redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The DG406DN-E3 is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 16:1
- Number of Circuits: 1
- On-State Resistance (Max): 100Ohm
- Channel-to-Channel Matching (ΔRon): 5Ohm
- Voltage - Supply, Single (V+): 12V
- Voltage - Supply, Dual (V±): ±5V ~ 20V
- Switch Time (Ton, Toff) (Max): 200ns, 150ns
- -3db Bandwidth: -
- Charge Injection: 15pC
- Channel Capacitance (CS(off), CD(off)): 8pF, 130pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 28-LCC (J-Lead)
- Supplier Device Package: 28-PLCC (11.51x11.51)
