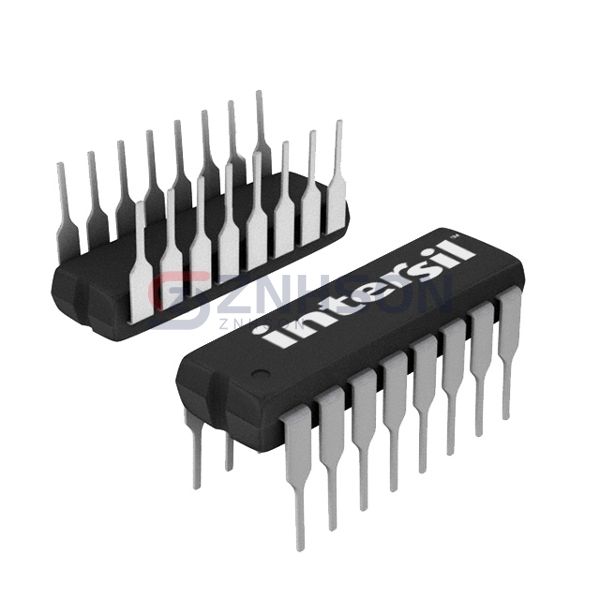

DG508AAK
Renesas Electronics America Inc
Renesas Electronics America Inc
IC MULTIPLEXER 8X1 16CDIP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Renesas Electronics America Inc's DG508AAK redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The DG508AAK is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Obsolete
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 400Ohm
- Channel-to-Channel Matching (ΔRon): 24Ohm
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 1.5µs, 1µs
- -3db Bandwidth: -
- Charge Injection: 4pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 25pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Through Hole
- Package / Case: 16-CDIP (0.300", 7.62mm)
- Supplier Device Package: 16-CERDIP
