DG9636EN-T1-E4
Vishay Siliconix
Vishay Siliconix
IC SWITCH DUAL SPST 10QFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DG9636EN-T1-E4 by Vishay Siliconix represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The DG9636EN-T1-E4 is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 110Ohm
- Channel-to-Channel Matching (ΔRon): 4Ohm
- Voltage - Supply, Single (V+): 2.7V ~ 12V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 70ns, 55ns
- -3db Bandwidth: 720MHz
- Charge Injection: 23.5pC
- Channel Capacitance (CS(off), CD(off)): 2pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -67dB @ 10MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount

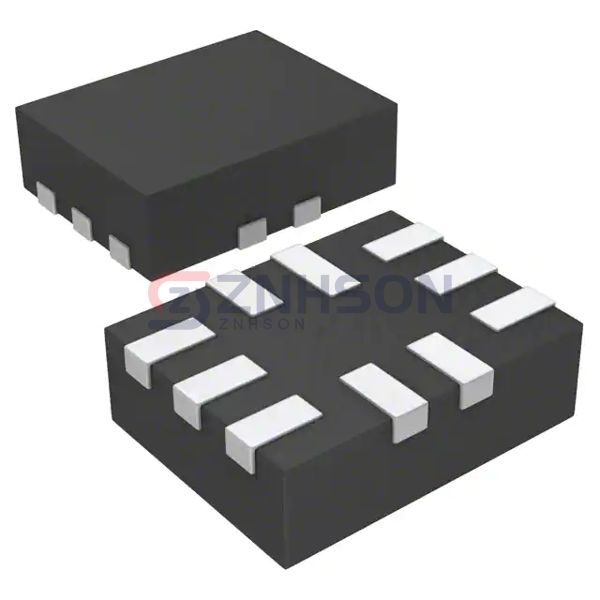

- Package / Case: 10-UFQFN
- Supplier Device Package: 10-miniQFN (1.4x1.8)
