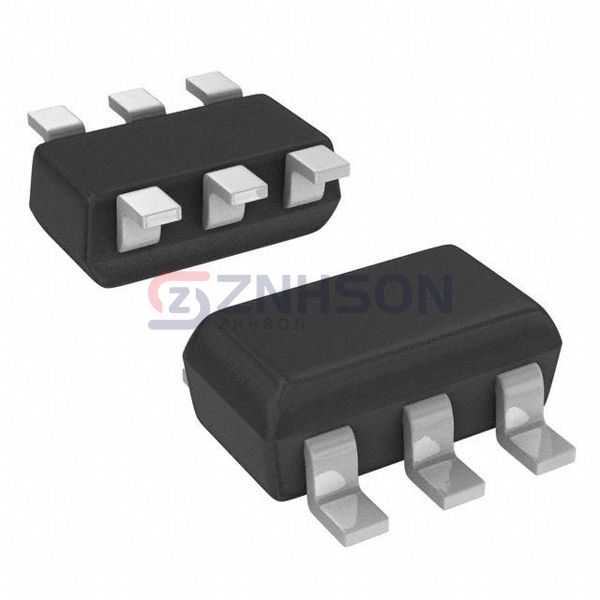

DIMD10A-7
Diodes Incorporated
Diodes Incorporated
TRANS NPN/PNP PREBIAS 0.3W SC74R
$0.00
Available to order
Reference Price (USD)
3,000+
$0.10450
6,000+
$0.09925
15,000+
$0.09138
30,000+
$0.08613
75,000+
$0.08000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DIMD10A-7 by Diodes Incorporated is a cutting-edge pre-biased BJT array designed for high-performance applications. Its unique architecture provides superior current handling and thermal dissipation, making it ideal for power electronics and RF modules. Commonly employed in aerospace, defense, and consumer electronics, this transistor array offers exceptional reliability. Diodes Incorporated's state-of-the-art production facilities ensure that the DIMD10A-7 delivers consistent results under extreme conditions. Engineers trust this product for its precision, durability, and ease of integration into complex systems.
Specifications
- Product Status: Obsolete
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA, 500mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 10kOhms, 100Ohms
- Resistor - Emitter Base (R2): 10kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 1mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 1mA, 10mA / 300mV @ 5mA, 100mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250MHz, 200MHz
- Power - Max: 300mW
- Mounting Type: Surface Mount
- Package / Case: SC-74, SOT-457
- Supplier Device Package: SC-74R
