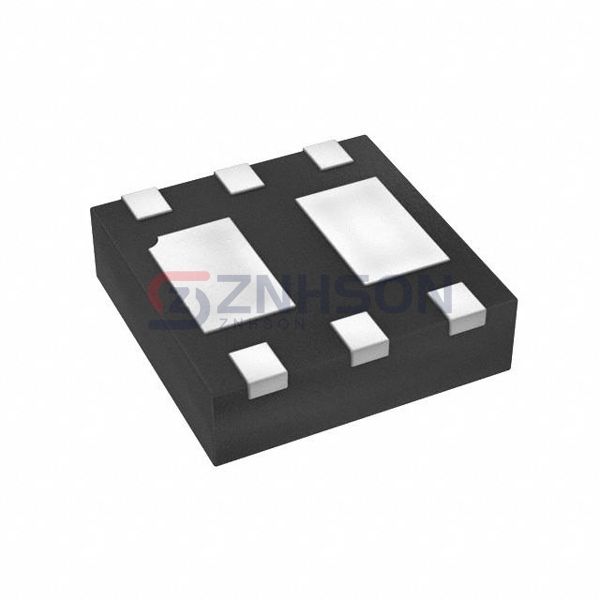

DMC2053UFDBQ-7
Diodes Incorporated
Diodes Incorporated
MOSFET BVDSS: 8V~24V U-DFN2020-6
$0.14
Available to order
Reference Price (USD)
1+
$0.13885
500+
$0.1374615
1000+
$0.136073
1500+
$0.1346845
2000+
$0.133296
2500+
$0.1319075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the DMC2053UFDBQ-7 by Diodes Incorporated, a standout in the Discrete Semiconductor Products category. Specifically designed as a Transistors - FETs, MOSFETs - Arrays solution, this component excels in high-frequency applications with its low on-resistance and fast switching capabilities. Perfect for use in power supplies, motor control, and LED lighting systems, the DMC2053UFDBQ-7 ensures energy efficiency and robust performance. Diodes Incorporated's commitment to quality makes this MOSFET array a top choice for engineers and designers worldwide.
Specifications
- Product Status: Active
- FET Type: N and P-Channel
- FET Feature: Standard
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 4.6A (Ta), 3.1A (Ta)
- Rds On (Max) @ Id, Vgs: 35mOhm @ 5A, 4.5V, 75mOhm @ 3.5A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 7.7nC @ 10V, 12.7nC @ 8V
- Input Capacitance (Ciss) (Max) @ Vds: 369pF @ 10V, 440pF @ 10V
- Power - Max: 820mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-UDFN Exposed Pad
- Supplier Device Package: U-DFN2020-6 (Type B)
