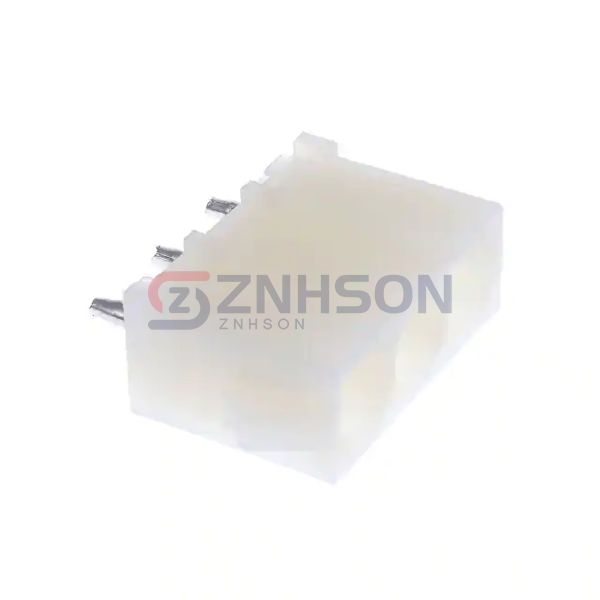

DME-03-S2-P-S
Adam Tech
Adam Tech
PCB MOUNT PIN HEADER (W/ POLARIZ
$0.61
Available to order
Reference Price (USD)
1+
$0.61000
500+
$0.6039
1000+
$0.5978
1500+
$0.5917
2000+
$0.5856
2500+
$0.5795
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DME-03-S2-P-S by Adam Tech is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the DME-03-S2-P-S supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Adam Tech ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.250" (6.35mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.157" (4.00mm)
- Overall Contact Length: -
- Insulation Height: 0.581" (14.76mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): 12A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-120-03-L-DV-A
Mill-Max Manufacturing Corp.
852-90-044-20-001000
Preci-Dip
450-V3-264-00-106101
Samtec Inc.
TMM-102-03-S-S
Amphenol ICC (FCI)
77315-418-29LF
Samtec Inc.

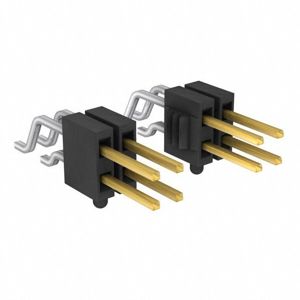

FTSH-150-01-F-DH-A-C-TR
Harwin Inc.

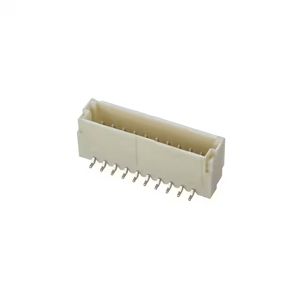

M40-3011246R
TE Connectivity AMP Connectors

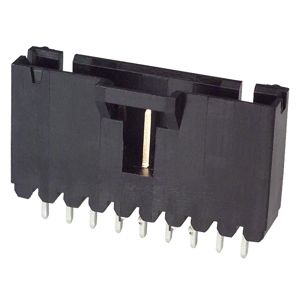

103908-8
Preci-Dip

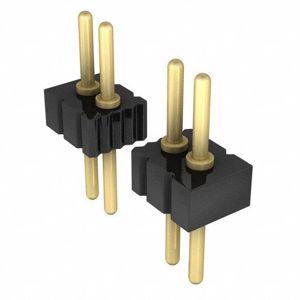

860-10-045-10-001101
