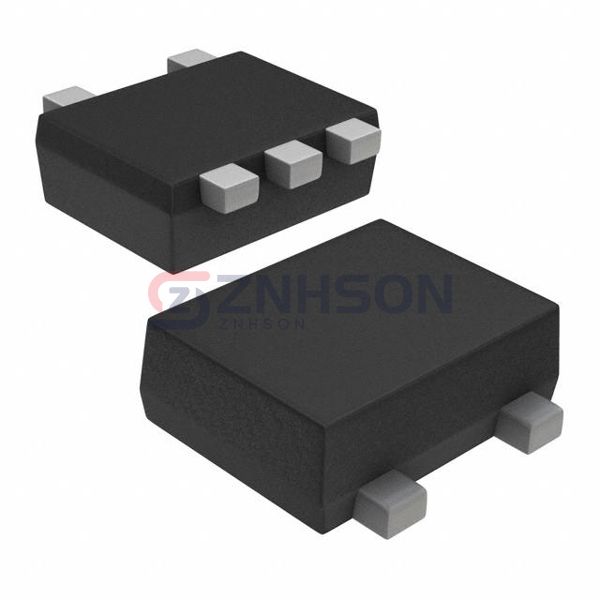

DMG963H50R
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SSMINI5
$0.00
Available to order
Reference Price (USD)
8,000+
$0.24517
16,000+
$0.23040
24,000+
$0.22793
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMG963H50R from Panasonic Electronic Components represents the pinnacle of pre-biased BJT array technology. Designed for high-density circuits, this product features low on-resistance and fast switching speeds, ideal for digital and analog applications. Its robust construction ensures reliable operation in telecommunications, computing, and industrial machinery. Panasonic Electronic Components's expertise in semiconductor manufacturing guarantees that the DMG963H50R meets the highest industry standards. Whether you're designing advanced control systems or simple electronic switches, this transistor array offers unparalleled performance and versatility.
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 47kOhms, 10kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-665
- Supplier Device Package: SSMini5-F4-B
