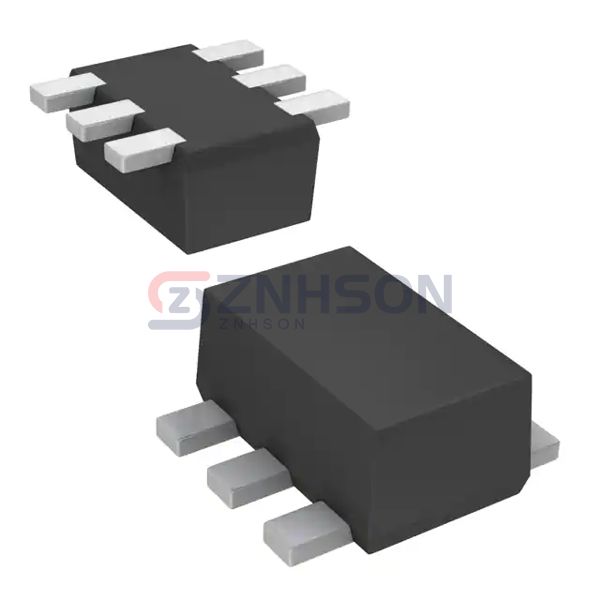

DMG964020R
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SSMINI6
$0.00
Available to order
Reference Price (USD)
8,000+
$0.24517
16,000+
$0.23040
24,000+
$0.22793
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with Panasonic Electronic Components's DMG964020R, a pre-biased BJT array built for precision and efficiency. This transistor array simplifies circuit layout by incorporating bias resistors within the package, reducing assembly time and cost. The DMG964020R is widely used in lighting systems, portable electronics, and automotive accessories. Panasonic Electronic Components's innovative approach ensures high yield and consistent quality across all production batches. With excellent thermal management and low power consumption, the DMG964020R is a smart choice for energy-sensitive applications.
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 22kOhms
- Resistor - Emitter Base (R2): 22kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 60 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SSMini6-F3-B
