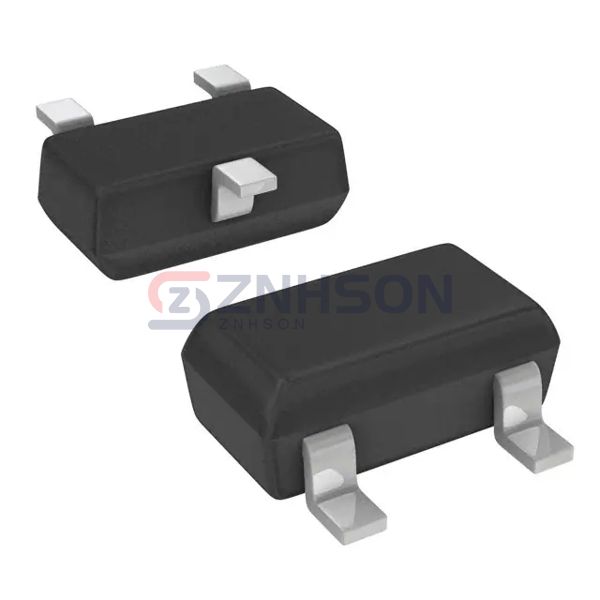

DMN2114SN-7
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 20V 1.2A SC59-3
$0.00
Available to order
Reference Price (USD)
3,000+
$0.12533
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the DMN2114SN-7 single MOSFET from Diodes Incorporated. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Diodes Incorporated's DMN2114SN-7 for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 1.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 100mOhm @ 500mA, 4.5V
- Vgs(th) (Max) @ Id: 1.4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: -
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 180 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SC-59-3
- Package / Case: TO-236-3, SC-59, SOT-23-3
