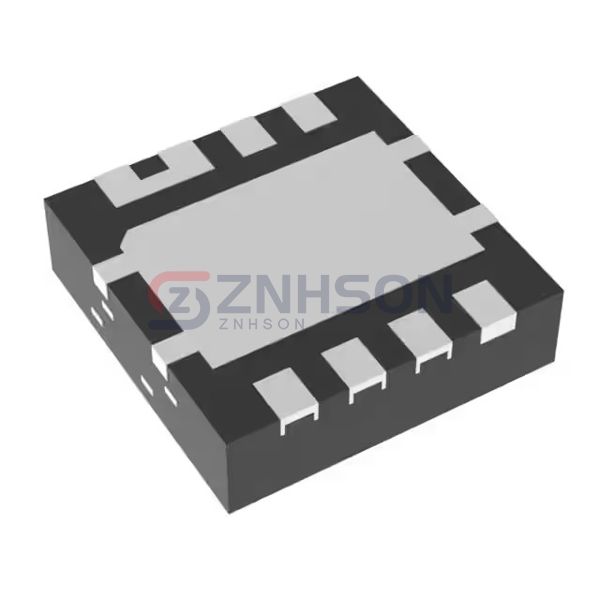

DMN3012LEG-13
Diodes Incorporated
Diodes Incorporated
MOSFET BVDSS: 25V-30V POWERDI333
$0.71
Available to order
Reference Price (USD)
1+
$0.70578
500+
$0.6987222
1000+
$0.6916644
1500+
$0.6846066
2000+
$0.6775488
2500+
$0.670491
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMN3012LEG-13 by Diodes Incorporated is a high-performance component within the Discrete Semiconductor Products category. Designed as part of the Transistors - FETs, MOSFETs - Arrays series, it offers exceptional durability and efficiency for power-sensitive applications. From medical equipment to aerospace technology, the DMN3012LEG-13 provides reliable operation under stringent conditions. Diodes Incorporated's innovative approach ensures this MOSFET array meets the needs of modern electronics.
Specifications
- Product Status: Active
- FET Type: 2 N-Channel (Dual)
- FET Feature: Standard
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 10A (Ta), 20A (Tc)
- Rds On (Max) @ Id, Vgs: 12mOhm @ 15A, 5V, 6mOhm @ 15A, 5V
- Vgs(th) (Max) @ Id: 2.1V @ 250µA, 1.15V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6.1nC @ 4.5V, 12.6nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 850pF @ 15V, 1480pF @ 15V
- Power - Max: 2.2W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-PowerLDFN
- Supplier Device Package: PowerDI3333-8 (Type D)
