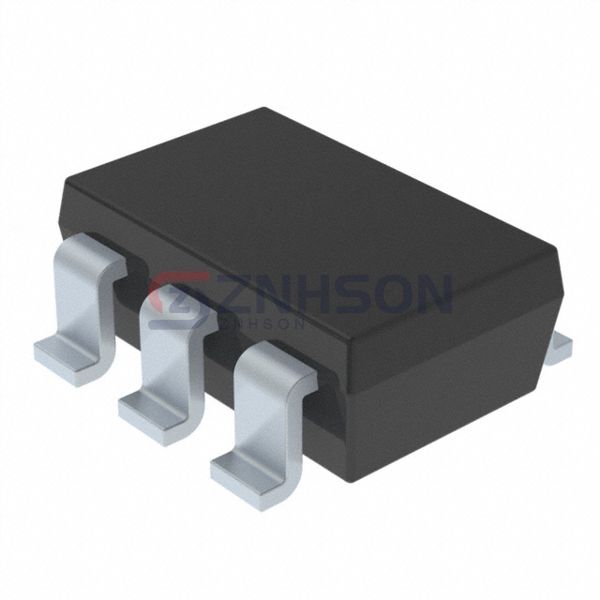

DMN3115UDM-7
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 30V 3.2A SOT-26
$0.00
Available to order
Reference Price (USD)
3,000+
$0.20003
6,000+
$0.18848
15,000+
$0.17693
30,000+
$0.16884
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the DMN3115UDM-7 from Diodes Incorporated, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the DMN3115UDM-7 ensures reliable performance in demanding environments. Upgrade your circuit designs with Diodes Incorporated's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 3.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 60mOhm @ 6A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: -
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 476 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 900mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-26
- Package / Case: SOT-23-6
