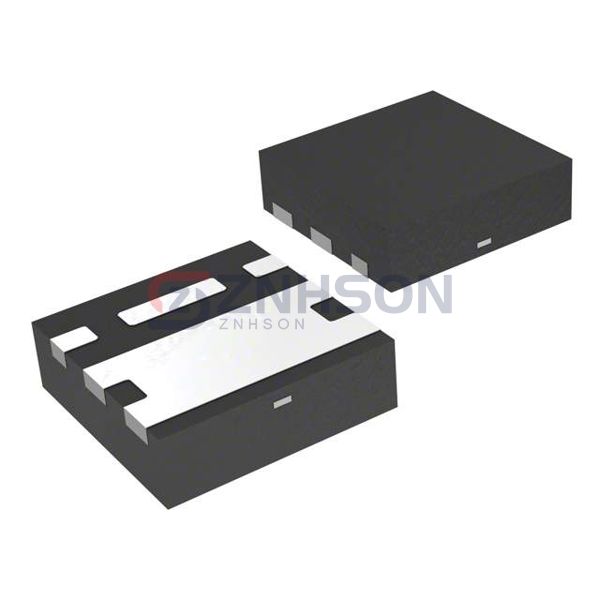

DMP1022UFDE-7
Diodes Incorporated
Diodes Incorporated
MOSFET P-CH 12V 9.1A 6UDFN
$0.00
Available to order
Reference Price (USD)
3,000+
$0.17128
6,000+
$0.16193
15,000+
$0.15258
30,000+
$0.14136
75,000+
$0.13668
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMP1022UFDE-7 from Diodes Incorporated sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Diodes Incorporated's DMP1022UFDE-7 for their critical applications.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 9.1A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.2V, 4.5V
- Rds On (Max) @ Id, Vgs: 16mOhm @ 8.2A, 4.5V
- Vgs(th) (Max) @ Id: 800mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 42.6 nC @ 5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 2953 pF @ 4 V
- FET Feature: -
- Power Dissipation (Max): 660mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2020-6 (Type E)
- Package / Case: 6-PowerUDFN
