DRC3114E0L
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN 100MW SSSMINI3
$0.00
Available to order
Reference Price (USD)
10,000+
$0.08813
30,000+
$0.08312
50,000+
$0.07727
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DRC3114E0L represents Panasonic Electronic Components's commitment to innovation in discrete semiconductors. This pre-biased single BJT transistor excels in: Automated test equipment HVAC control boards Robotics servo drives With hFE matching within 10% across production lots, it guarantees consistent performance. Its 50V VCEO rating handles demanding industrial environments with ease.
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 10 kOhms
- Resistor - Emitter Base (R2): 10 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 35 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 100 mW
- Mounting Type: Surface Mount
- Package / Case: SOT-723
- Supplier Device Package: SSSMini3-F2-B
Related Products
Panasonic Electronic Components
UNR5116G0L
Panasonic Electronic Components
UNR212400L
Rohm Semiconductor
DTC143XUBHZGTL
Rohm Semiconductor
DTC143ZEBHZGTL
Micro Commercial Co
DTA123JKA-TP
NXP USA Inc.
PDTB123EK,115
Infineon Technologies

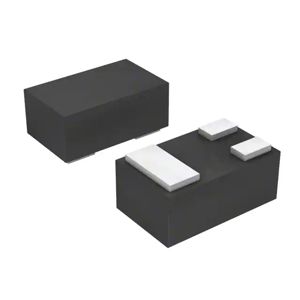

BCR 179L3 E6327
Toshiba Semiconductor and Storage

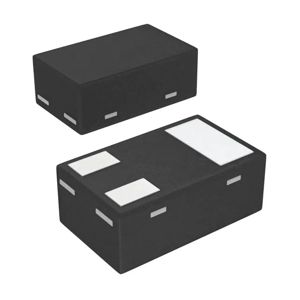

RN2101ACT(TPL3)
