DRC9114W0L
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN 125MW SSMINI3
$0.00
Available to order
Reference Price (USD)
3,000+
$0.07980
6,000+
$0.07182
15,000+
$0.06384
30,000+
$0.05985
75,000+
$0.05320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DRC9114W0L represents Panasonic Electronic Components's commitment to innovation in discrete semiconductors. This pre-biased single BJT transistor excels in: Automated test equipment HVAC control boards Robotics servo drives With hFE matching within 10% across production lots, it guarantees consistent performance. Its 50V VCEO rating handles demanding industrial environments with ease.
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 10 kOhms
- Resistor - Emitter Base (R2): 4.7 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 125 mW
- Mounting Type: Surface Mount
- Package / Case: SC-89, SOT-490
- Supplier Device Package: SSMini3-F3-B
Related Products
Infineon Technologies

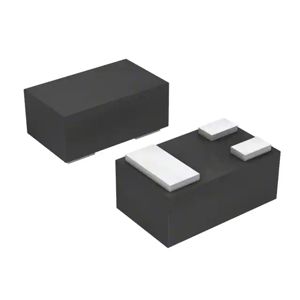

BCR 101L3 E6327
NXP USA Inc.
PDTA115TK,115
NXP USA Inc.

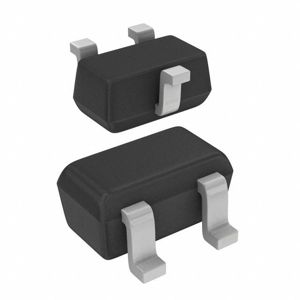

PDTA114EE,115
Panasonic Electronic Components
DRC5123E0L
Diodes Incorporated
DDTC115ECA-7
Nexperia USA Inc.
PDTC114EU/MIF
Panasonic Electronic Components
DRC9114T0L
Rohm Semiconductor
DTA114WSATP
Toshiba Semiconductor and Storage

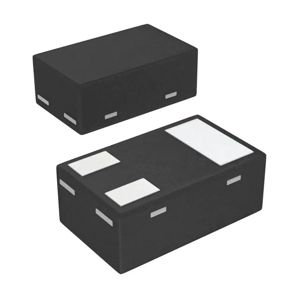

RN1103CT(TPL3)
