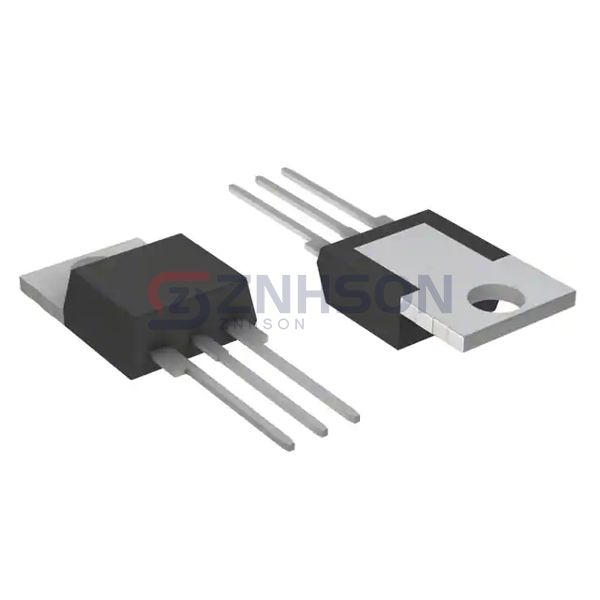

DSTF30120CR
Littelfuse Inc.
Littelfuse Inc.
DIODE ARRAY SCHOTKY 120V TO220AB
$1.83
Available to order
Reference Price (USD)
1+
$1.61000
10+
$1.42600
25+
$1.28800
100+
$1.12700
250+
$0.98900
500+
$0.87400
1,000+
$0.69000
3,000+
$0.64400
5,000+
$0.61180
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DSTF30120CR from Littelfuse Inc. is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose Littelfuse Inc.'s DSTF30120CR for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 970 mV @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 800 µA @ 120 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack, Isolated Tab
- Supplier Device Package: ITO-220AB
