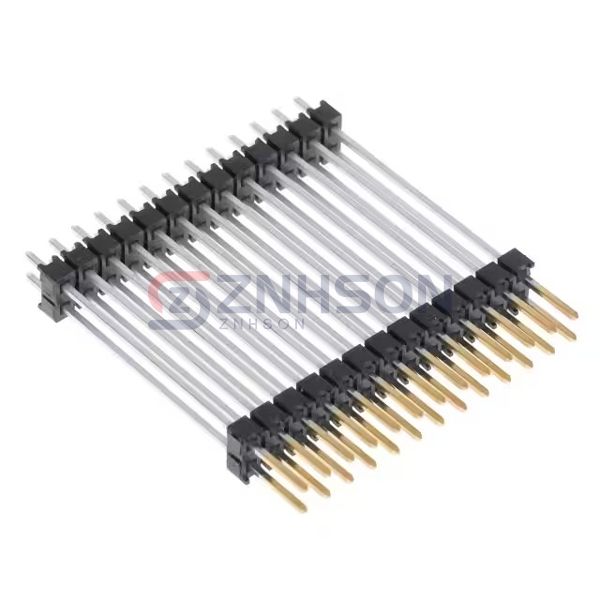

DW-13-14-F-D-1070
Samtec Inc.
Samtec Inc.
CONN HDR 26POS 0.1 STACK T/H
$4.75
Available to order
Reference Price (USD)
1+
$2.73000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DW-13-14-F-D-1070 from Samtec Inc. is a dependable solution for board-to-board connections, offering superior spacing and stacking capabilities. With excellent signal integrity and durability, these connectors are perfect for high-frequency applications. They are widely used in telecommunications, test & measurement equipment, and audio-visual systems. For example, the DW-13-14-F-D-1070 is often integrated into 5G base stations, oscilloscopes, and professional audio mixers.
Specifications
- Product Status: Active
- Number of Positions: 26
- Pitch: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing: 0.100" (2.54mm)
- Length - Overall Pin: 1.430" (36.322mm)
- Length - Post (Mating): 0.250" (6.350mm)
- Length - Stack Height: 1.070" (27.178mm)
- Length - Tail: 0.110" (2.794mm)
- Mounting Type: Through Hole
- Termination: Solder
- Contact Finish - Post (Mating): Gold
- Contact Finish Thickness - Post (Mating): 3.00µin (0.076µm)
- Color: Black
