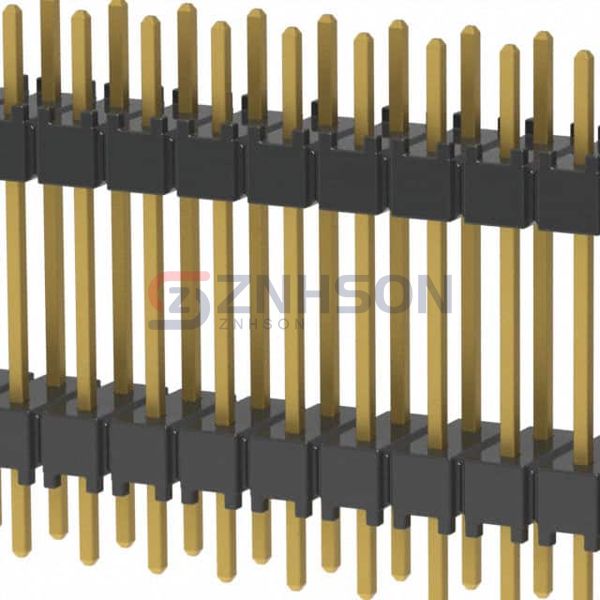

DW-20-10-G-D-500
Samtec Inc.
Samtec Inc.
CONN HDR 40POS 0.1 STACK T/H
$8.79
Available to order
Reference Price (USD)
1+
$5.25000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the DW-20-10-G-D-500 by Samtec Inc. is a high-performance rectangular connector for board spacers and stackers. Its innovative design ensures easy installation and long-term reliability, catering to industries like automotive, industrial machinery, and consumer gadgets. You ll find the DW-20-10-G-D-500 in car ECUs, CNC machines, and smart home devices where precision and robustness are key.
Specifications
- Product Status: Active
- Number of Positions: 40
- Pitch: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing: 0.100" (2.54mm)
- Length - Overall Pin: 0.830" (21.082mm)
- Length - Post (Mating): 0.220" (5.588mm)
- Length - Stack Height: 0.500" (12.700mm)
- Length - Tail: 0.110" (2.794mm)
- Mounting Type: Through Hole
- Termination: Solder
- Contact Finish - Post (Mating): Gold
- Contact Finish Thickness - Post (Mating): 10.0µin (0.25µm)
- Color: Black
