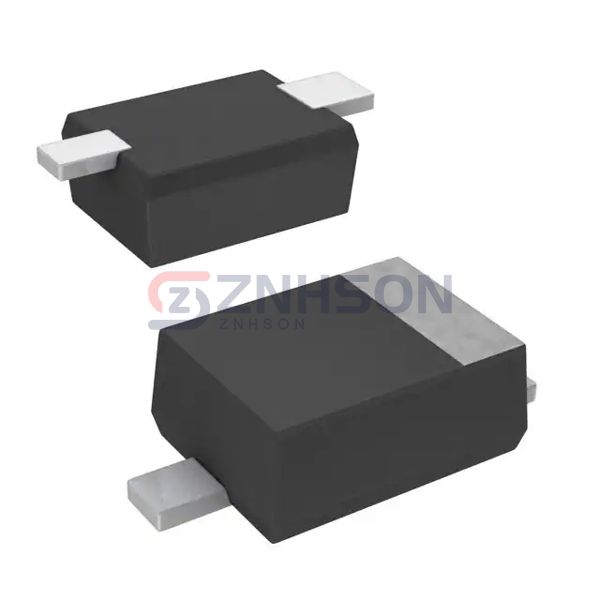

DZ2J22000L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE ZENER 22V 200MW SMINI2
$0.44
Available to order
Reference Price (USD)
3,000+
$0.09878
6,000+
$0.09389
15,000+
$0.08655
30,000+
$0.08166
75,000+
$0.07433
150,000+
$0.07188
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DZ2J22000L from Panasonic Electronic Components is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the DZ2J22000L is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Discontinued at Digi-Key
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±5%
- Power - Max: 200 mW
- Impedance (Max) (Zzt): 80 Ohms
- Current - Reverse Leakage @ Vr: 50 nA @ 17 V
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 10 mA
- Operating Temperature: -
- Mounting Type: Surface Mount
- Package / Case: SC-90, SOD-323F
- Supplier Device Package: SMini2-F5-B
Related Products
Vishay General Semiconductor - Diodes Division
BZG04-27-HM3-08
Solid State Inc.
1N2977A
Taiwan Semiconductor Corporation
BZV55B10 L0G
Microchip Technology
CDLL5265B
Vishay General Semiconductor - Diodes Division
BZD17C150P-E3-18
Micro Commercial Co
BZT52C3V3S-TP
Microchip Technology

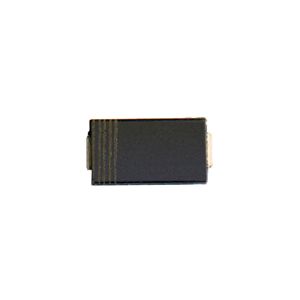

SMAJ5916AE3/TR13
