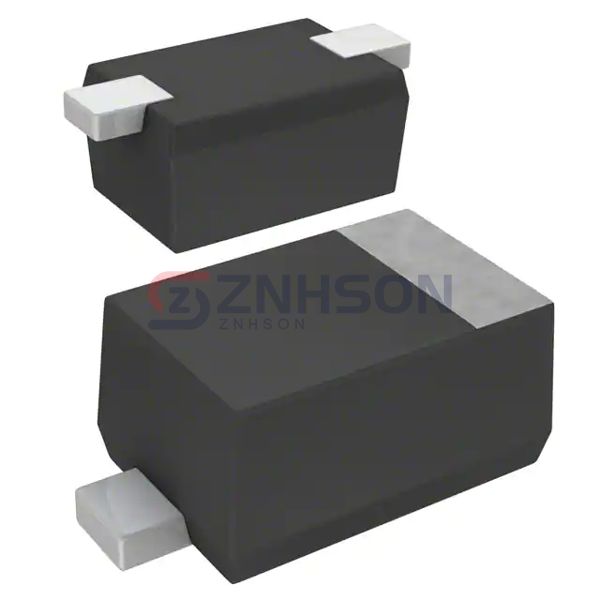

DZ2S09100L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE ZENER 9.1V 150MW SSMINI2
$0.39
Available to order
Reference Price (USD)
3,000+
$0.10148
6,000+
$0.09533
15,000+
$0.08918
30,000+
$0.08180
75,000+
$0.07872
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DZ2S09100L by Panasonic Electronic Components is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the DZ2S09100L is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Discontinued at Digi-Key
- Voltage - Zener (Nom) (Vz): 9.1 V
- Tolerance: ±5%
- Power - Max: 150 mW
- Impedance (Max) (Zzt): 20 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 6 V
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 10 mA
- Operating Temperature: -
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SSMini2-F5-B
