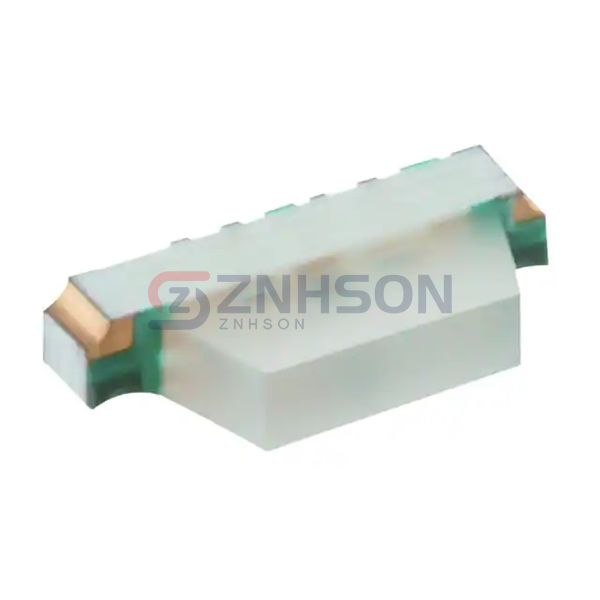

EASV2713RGBA1
Everlight Electronics Co Ltd
Everlight Electronics Co Ltd
PCB SIDE VIEW SMD LED RGB
$0.44
Available to order
Reference Price (USD)
1+
$0.44000
500+
$0.4356
1000+
$0.4312
1500+
$0.4268
2000+
$0.4224
2500+
$0.418
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the EASV2713RGBA1 by Everlight Electronics Co Ltd, a premium LED Indication - Discrete solution under the Optoelectronics umbrella. This LED stands out with its long lifespan, low power consumption, and vibrant illumination. Perfect for applications requiring durable and efficient light sources, such as medical devices, telecommunications equipment, and home appliances. The EASV2713RGBA1 ensures reliable performance in demanding environments, making it a top choice for engineers and designers seeking quality optoelectronic components.
Specifications
- Product Status: Active
- Color: Red, Green, Blue (RGB)
- Configuration: Common Anode
- Lens Color: White
- Lens Transparency: Diffused
- Millicandela Rating: 25.25mcd, 72.5mcd, 17.75mcd
- Lens Style: Rectangle with Flat Top
- Lens Size: 2.00mm x 0.55mm
- Voltage - Forward (Vf) (Typ): 1.85V Red, 2.9V Green, 2.9V Blue
- Current - Test: 5mA Red, 5mA Green, 5mA Blue
- Viewing Angle: 130°
- Mounting Type: Surface Mount, Right Angle
- Wavelength - Dominant: 619nm Red, 532nm Green, 473nm Blue
- Wavelength - Peak: 626nm Red, 518nm Green, 468nm Blue
- Features: -
- Package / Case: 4-SMD, No Lead
- Supplier Device Package: Chip LED
- Size / Dimension: 2.70mm L x 1.35mm W
- Height (Max): 0.55mm
Related Products
Broadcom Limited
HSMF-C143
Bivar Inc.
SMTL2-SUWD
Vishay Semiconductor Opto Division
TLMB1100-GS08
Vishay Semiconductor Opto Division
VLMK31R1S2-GS08
Visual Communications Company - VCC
VAOL-S6GT4
Lite-On Inc.
LTL-4252N
Inolux
IN-B101FCH
Broadcom Limited

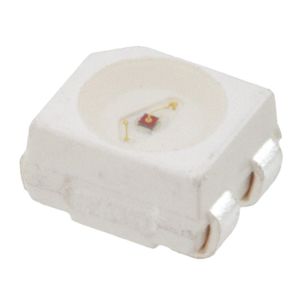

HSML-A401-U40M1
