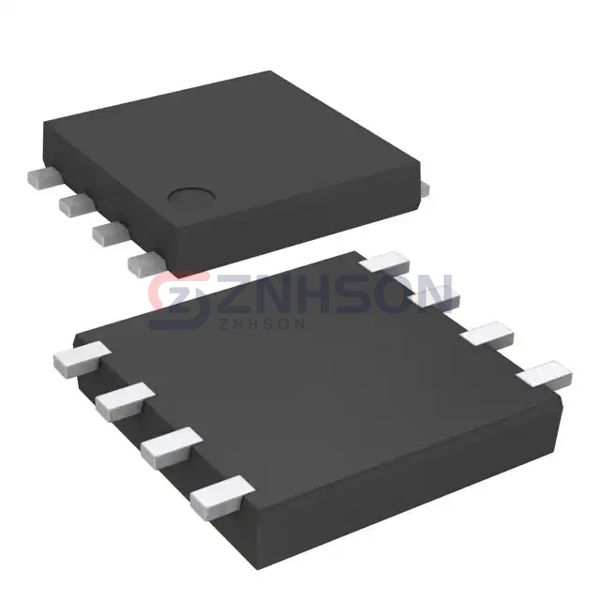

ECH8501-TL-H
onsemi
onsemi
TRANS NPN/PNP 30V 5A 8ECH
$0.33
Available to order
Reference Price (USD)
3,000+
$0.33943
6,000+
$0.31733
15,000+
$0.31365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ECH8501-TL-H BJT Array from onsemi brings military-grade robustness to commercial applications. With a wide operating temperature range (-55 C to +150 C), this Discrete Semiconductor Product performs flawlessly in downhole drilling equipment and satellite subsystems. Its symmetrical layout simplifies heat sink integration for high-power RF amplifiers. The ECH8501-TL-H undergoes rigorous Q-Class testing to guarantee radiation hardness for aerospace deployments.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN, PNP
- Current - Collector (Ic) (Max): 5A
- Voltage - Collector Emitter Breakdown (Max): 30V
- Vce Saturation (Max) @ Ib, Ic: 110mV @ 125mA, 2.5A
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 500mA, 2V
- Power - Max: 1.6W
- Frequency - Transition: 280MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Flat Lead
- Supplier Device Package: 8-ECH
