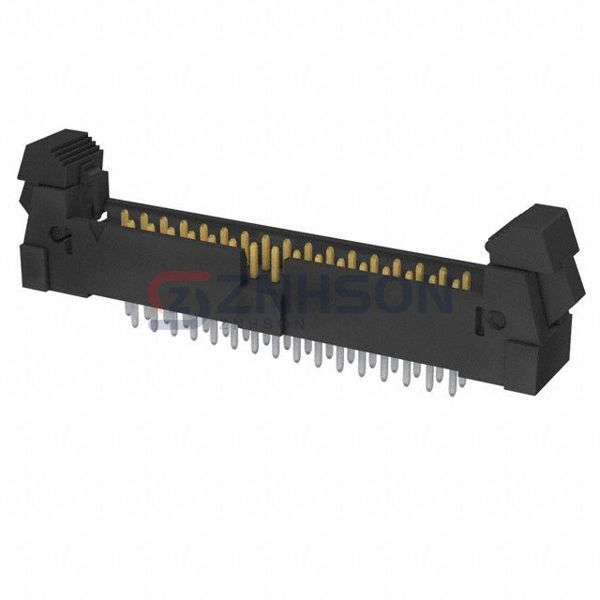

EHT-117-01-F-D-01
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 34POS 2MM
$10.15
Available to order
Reference Price (USD)
1+
$6.82000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The EHT-117-01-F-D-01 by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: 33
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: -
- Insulation Height: 0.370" (9.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
90120-0925
Samtec Inc.
MMT-109-01-TM-SH-K-TR
Samtec Inc.
FTE-108-02-G-DV
Assmann WSW Components
AWHW 16A-0102-T
TE Connectivity AMP Connectors
350422-1
TE Connectivity AMP Connectors
146130-6
Mill-Max Manufacturing Corp.
850-40-023-10-001000
Samtec Inc.

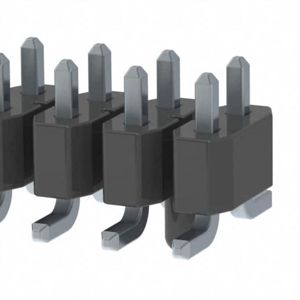

TSM-109-05-T-DV-A
