EJH-110-01-S-D-TH
Samtec Inc.
Samtec Inc.

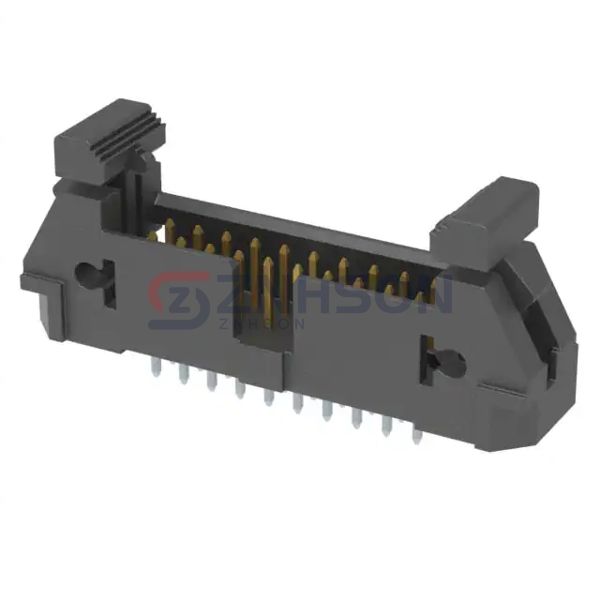

CONN HEADER VERT 20POS 2.54MM
$13.05
Available to order
Reference Price (USD)
1+
$8.14000
10+
$7.79700
100+
$6.44100
500+
$5.42400
1,000+
$4.74600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the EJH-110-01-S-D-TH rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the EJH-110-01-S-D-TH meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.225" (5.72mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.500" (12.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
