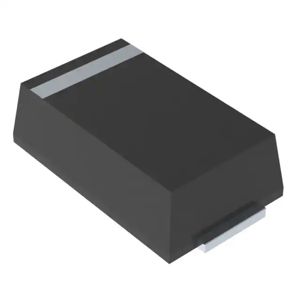

ES1CHR3G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE GEN PURP 150V 1A DO214AC
$0.00
Available to order
Reference Price (USD)
3,600+
$0.09428
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ES1CHR3G from Taiwan Semiconductor Corporation is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Taiwan Semiconductor Corporation's ES1CHR3G for superior performance and durability in demanding environments.
Specifications
- Product Status: Discontinued at Digi-Key
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 150 V
- Capacitance @ Vr, F: 16pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
- Operating Temperature - Junction: -55°C ~ 150°C
