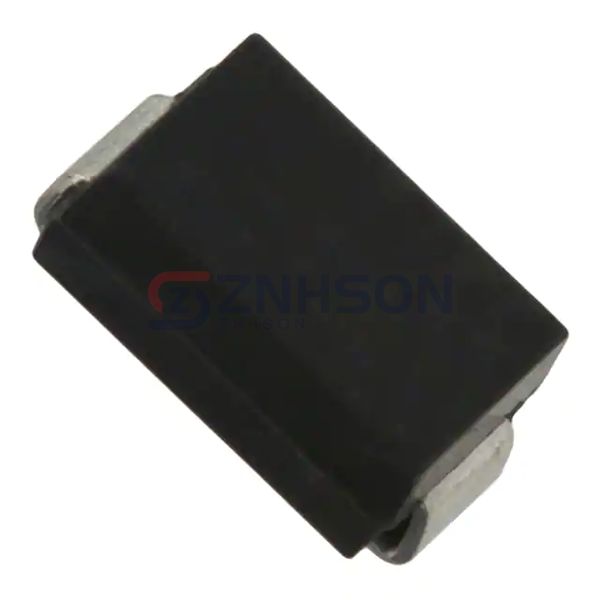

ES1H
onsemi
onsemi
DIODE GEN PURP 500V 1A SMA
$0.42
Available to order
Reference Price (USD)
7,500+
$0.08259
15,000+
$0.07385
37,500+
$0.06948
52,500+
$0.06511
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ES1H from onsemi is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust onsemi's ES1H for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 500 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 1.7 V @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 500 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
- Operating Temperature - Junction: 150°C (Max)
