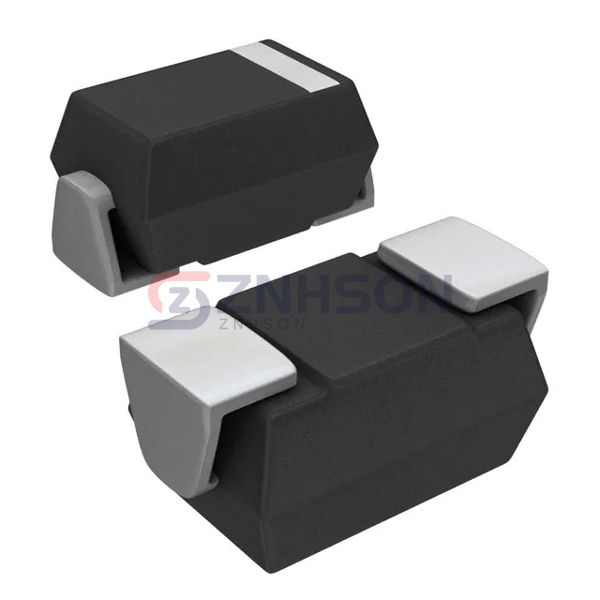

ES1M-TP
Micro Commercial Co
Micro Commercial Co
DIODE GEN PURP 1KV 1A DO214AC
$0.00
Available to order
Reference Price (USD)
3,000+
$0.09225
6,000+
$0.08775
15,000+
$0.08100
30,000+
$0.07650
75,000+
$0.07425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ES1M-TP by Micro Commercial Co is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the ES1M-TP ensures long-term reliability even in harsh operating conditions. Trust Micro Commercial Co for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1000 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 1.7 V @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 100 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 1000 V
- Capacitance @ Vr, F: 45pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (HSMA)
- Operating Temperature - Junction: -50°C ~ 150°C
Related Products
Infineon Technologies
D251K20BXPSA1
Vishay General Semiconductor - Diodes Division
BY127MGPHE3/54
Central Semiconductor Corp
1N4003 BK
Vishay General Semiconductor - Diodes Division
VS-6TQ045SPBF
Taiwan Semiconductor Corporation
S1KL MTG
Vishay General Semiconductor - Diodes Division
1N4004-E3/73
Taiwan Semiconductor Corporation
SR305HR0G
Taiwan Semiconductor Corporation
SK56CHM6G
Diodes Incorporated

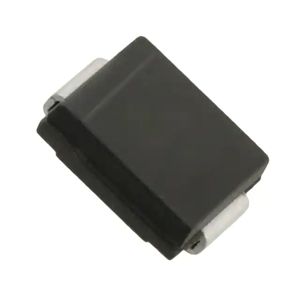

B345CE-13
