ES2DH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE GEN PURP 200V 2A DO214AA
$0.16
Available to order
Reference Price (USD)
1+
$0.15631
500+
$0.1547469
1000+
$0.1531838
1500+
$0.1516207
2000+
$0.1500576
2500+
$0.1484945
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ES2DH by Taiwan Semiconductor Corporation is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the ES2DH ensures long-term reliability even in harsh operating conditions. Trust Taiwan Semiconductor Corporation for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200 V
- Current - Average Rectified (Io): 2A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 2 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 10 µA @ 200 V
- Capacitance @ Vr, F: 25pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
- Operating Temperature - Junction: -55°C ~ 150°C
Related Products
Panjit International Inc.
SS20100FL-AU_R1_000A1
Vishay General Semiconductor - Diodes Division
VSS8D3M6-M3/I
STMicroelectronics
STPSC6H065BY-TR
Taiwan Semiconductor Corporation
SRAF530
Vishay General Semiconductor - Diodes Division
1N6482HE3/96
onsemi
NRVBM130LT1G
Micro Commercial Co

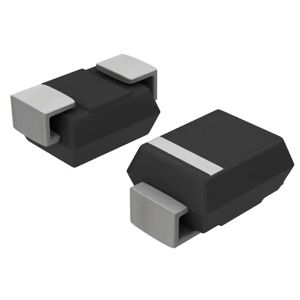

SK55L-TP
Panjit International Inc.

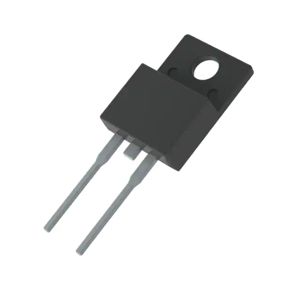

MBR1090F_T0_00001
Panjit International Inc.

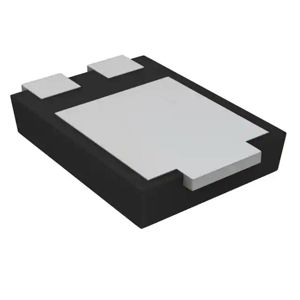

SV1040_R2_00001
